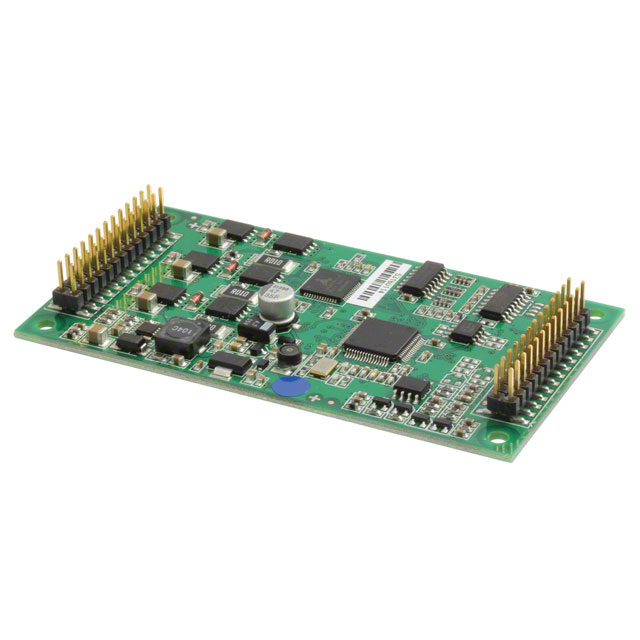

TMCM-1630-2C
BRUSHLESS DRIVER 10A 12-48V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1630-2C is a single-axis brushless DC motor controller and driver board. This TMCM series module operates from a 12-48VDC supply and supports a 12-48V load, delivering up to 10A output current. The TMCM-1630-2C facilitates control via CAN and RS-232 interfaces, enabling integration into various automation and motion control systems. Designed for chassis mounting, this board is suitable for applications in industrial automation, robotics, and general motion control where precise brushless motor operation is required. The operating temperature range is -25°C to 60°C.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | BB-163X |
| Mounting Type | Chassis Mount |
| Current - Output | 10A |
| Interface | CAN, RS-232 |
| Type | Board |
| Operating Temperature | -25°C ~ 60°C |
| Voltage - Supply | 12 ~ 48VDC |
| Voltage - Load | 12 ~ 48V |
| Number of Motors | 1 |
| Motor Type | Brushless (BLDC) |
| Control / Drive Type | Brushless |
