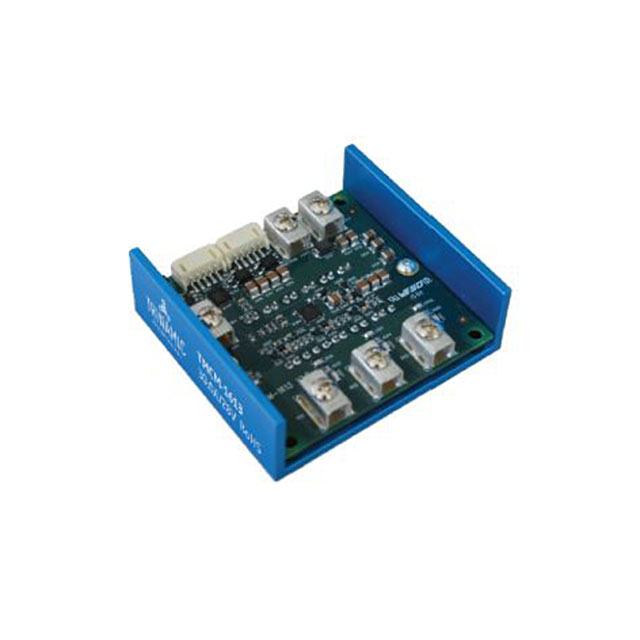

TMCM-1613
BOARD CONTROL BLDC MOTOR 500W, 2Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1613 is a single-axis, high-performance motor control board designed for driving Brushless DC (BLDC) motors. This TMCM series module operates from a 24VDC supply and delivers up to 30A of output current to a 24V load. The TMCM-1613 offers flexible control through its SCI/UART and Step/Direction interfaces, enabling seamless integration into complex automation and motion control systems. Its robust design is suitable for demanding applications in industrial automation, robotics, and advanced manufacturing. The board is chassis mountable for secure installation in various equipment configurations.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 30A |
| Interface | SCI / UART, Step / Direction |
| Type | Board |
| Operating Temperature | - |
| Voltage - Supply | 24VDC |
| Voltage - Load | 24V |
| Number of Motors | 1 |
| Motor Type | Brushless (BLDC) |
| Control / Drive Type | Brushless |
