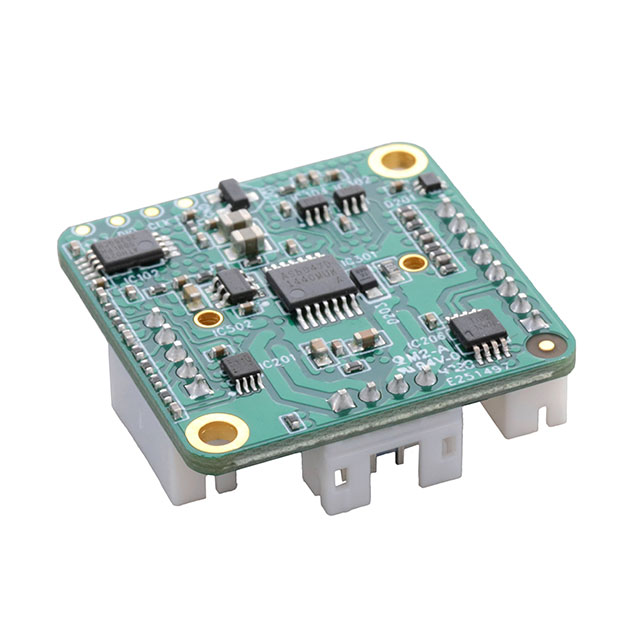

TMCM-1321
STEPPER DRIVER 0.7A/24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1321 is a bipolar stepper motor driver module designed for precise motion control applications. This compact, chassis-mount board facilitates the driving of one stepper motor with output current capabilities up to 0.7A per phase. It operates from a DC supply voltage range of 9 to 28VDC, with a corresponding load voltage range of 9 to 28V. The TMCM-1321 offers flexible control through its RS-485 and SPI interfaces, enabling seamless integration into various automation and control systems. Typical industries benefiting from this component include industrial automation, robotics, and precision instrumentation where reliable stepper motor control is paramount. The module is supplied in bulk packaging.
Additional Information
Series: TMCMRoHS Status: unknownManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 0.7A |
| Interface | RS-485, SPI |
| Type | Board |
| Operating Temperature | -30°C ~ 40°C |
| Voltage - Supply | 9 ~ 28VDC |
| Voltage - Load | 9 ~ 28V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
