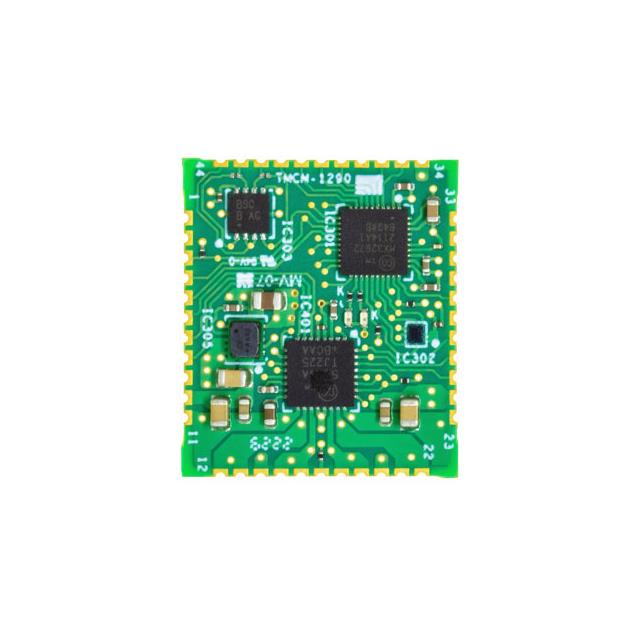

TMCM-1290-TMCL
STEPPER DRIVER MODULE WITH INTEGManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated TMCM-1290-TMCL is a single-axis stepper motor driver module designed for high-performance motion control applications. This unit supports bipolar stepper motors with a supply voltage range of 4.5VDC to 36VDC and an output current capability of up to 2.1A. Featuring an integrated stepper driver, the TMCM-1290-TMCL offers robust control and efficient operation. Communication interfaces include RS-485 and SPI, facilitating seamless integration into complex automation systems. Its chassis mount design is suitable for industrial environments, including automation, robotics, and general industrial machinery. The module operates reliably across a temperature range of -30°C to 60°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 2.1A |
| Interface | RS-485, SPI |
| Type | Board |
| Operating Temperature | -30°C ~ 60°C |
| Voltage - Supply | 4.5 ~ 36VDC |
| Voltage - Load | 4.5 ~ 36V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
Request a Quote
Clients Also Buy

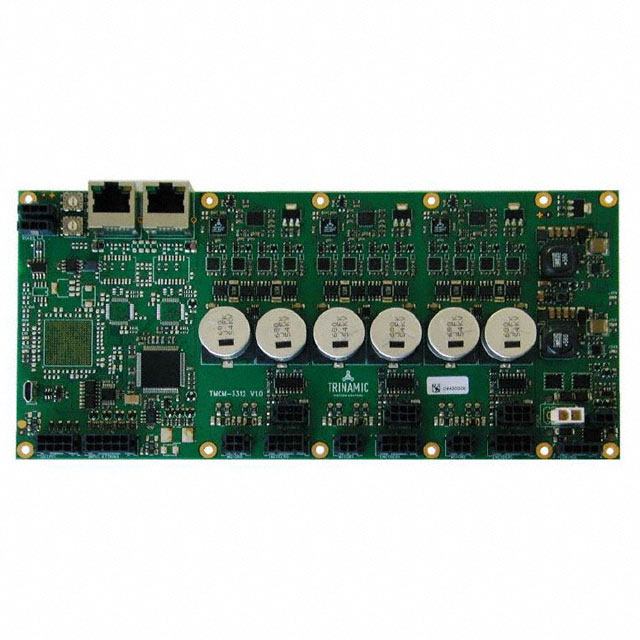

TMCM-3313
STEPPER DRIVER 3A 9-52.8V LOAD
TMCM-1231-TMCL
STEPPER DRIVER 6.5A 10-52V

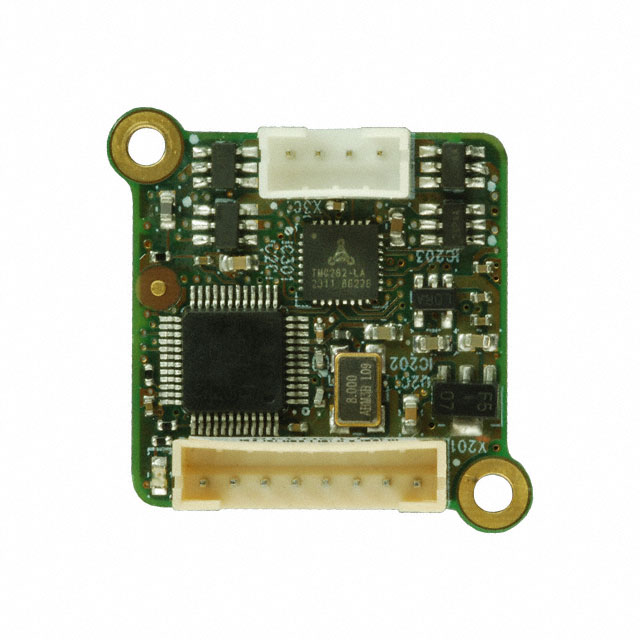

TMCM-1021
