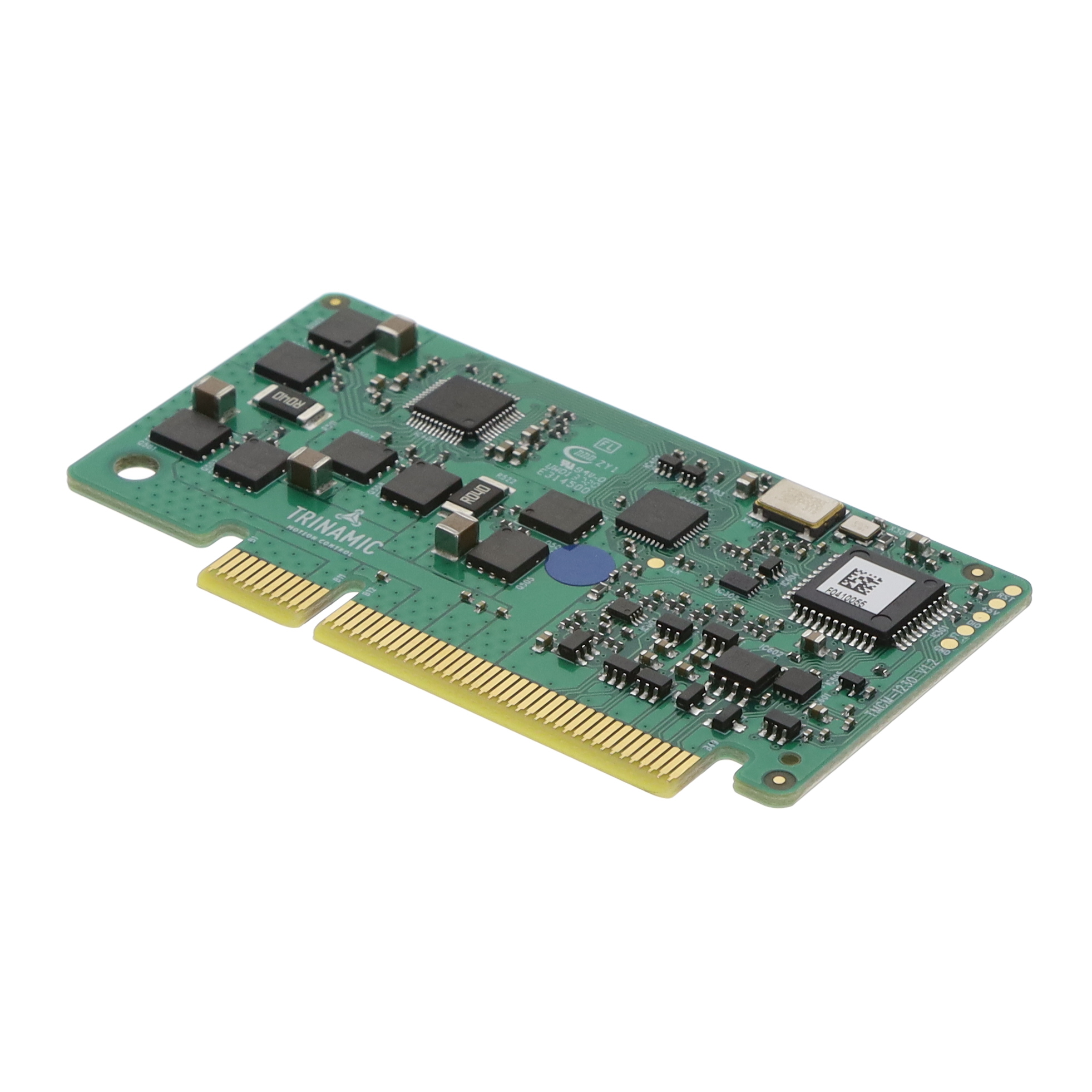

TMCM-1230-TMCL
STEPPER DRIVER 5A 10-30VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1230-TMCL is a single-axis stepper motor driver board. This bipolar stepper driver operates from a 10-30V load supply and features a 5VDC internal supply. The output current capability is 5A. Control is managed via RS-485 and Step/Direction interfaces. Designed for chassis mounting, this component is suitable for applications requiring precise motion control in industrial automation and robotics. The operating temperature range is -30°C to 60°C.
Additional Information
Series: TMCMRoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 5A |
| Interface | RS-485, Step / Direction |
| Type | Board |
| Operating Temperature | -30°C ~ 60°C |
| Voltage - Supply | 5VDC |
| Voltage - Load | 10 ~ 30V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
