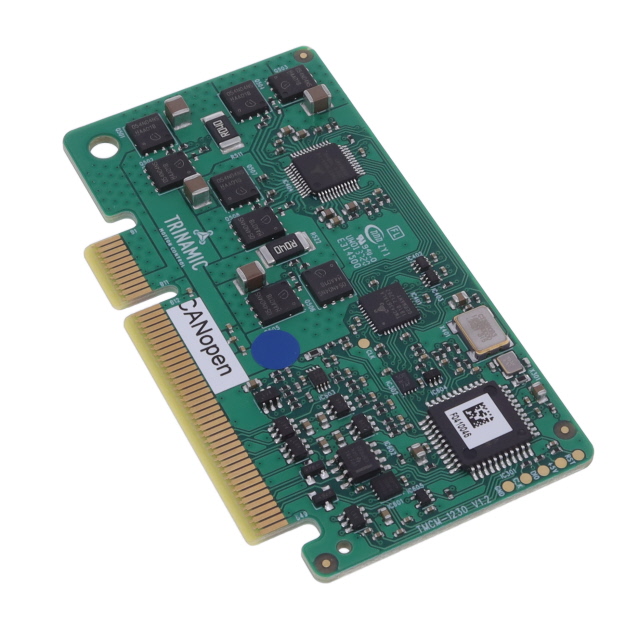

TMCM-1230-CANOPEN
STEPPER DRIVER 5A 10-30VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1230-CANOPEN is a single-axis stepper motor driver board designed for bipolar stepper motors. This module delivers up to 5A of continuous output current and operates with a load voltage range of 10V to 30V, powered by a 5VDC supply. The TMCM series driver supports both RS-485 and Step/Direction interfaces for flexible control. Key features include its robust bipolar drive technology and a chassis mount design for secure integration into systems. The operating temperature range is -30°C to 60°C. This component is commonly utilized in industrial automation, robotics, and motion control applications requiring precise stepper motor actuation.
Additional Information
Series: TMCMRoHS Status: unknownManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 5A |
| Interface | RS-485, Step / Direction |
| Type | Board |
| Operating Temperature | -30°C ~ 60°C |
| Voltage - Supply | 5VDC |
| Voltage - Load | 10 ~ 30V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
