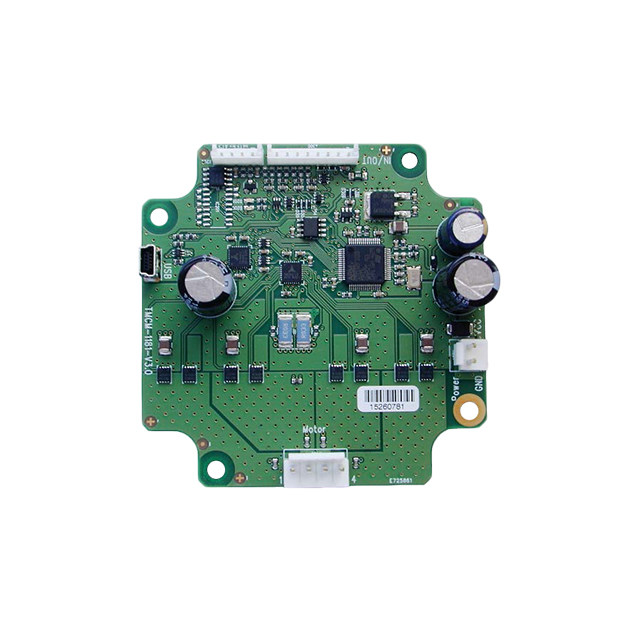

TMCM-1181
STEPPER DRIVER 6.5AManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1181 is a bipolar stepper motor driver module designed for high-performance motion control applications. This compact unit supports a 24VDC supply and delivers a continuous output current of up to 6.5A, making it suitable for driving demanding stepper motors. The module features both USB and RS-485 interfaces for versatile control and communication. Its robust design and chassis mount capability ensure reliable operation in industrial environments. The TMCM-1181 is commonly employed in automation, robotics, and industrial machinery where precise stepper motor control is critical.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 6.5A |
| Interface | USB, RS-485 |
| Type | Board |
| Operating Temperature | -30°C ~ 60°C |
| Voltage - Supply | 24VDC |
| Voltage - Load | - |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
