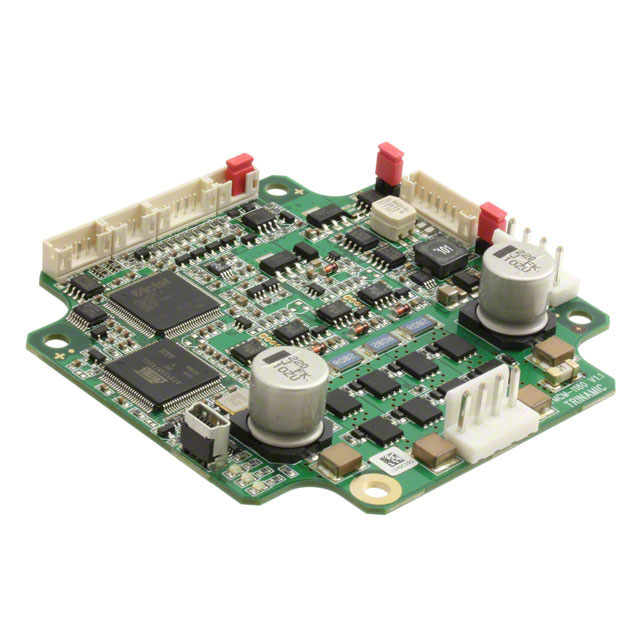

TMCM-1180-TMCL
STEPPER DRIVER 5.5A 18-55V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated TMCM-1180-TMCL is a single-axis bipolar stepper motor driver module designed for high-performance motion control applications. This TMCM series module delivers a continuous output current of 5.5A, supporting a load voltage range of 18V to 55V. Its supply voltage operates from 24V to 48VDC. The TMCM-1180-TMCL offers versatile control options, including RS-232, RS-485, Step/Direction, and USB interfaces, facilitating integration into diverse system architectures. Its robust design is suitable for demanding industrial environments, finding application in automation, robotics, and machine tool sectors. The module is chassis mountable and operates within a temperature range of -20°C to 50°C.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 75 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 5.5A |
| Interface | RS-232, RS-485, Step / Direction, USB |
| Type | Board |
| Operating Temperature | -20°C ~ 50°C |
| Voltage - Supply | 24 ~ 48VDC |
| Voltage - Load | 18 ~ 55V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
