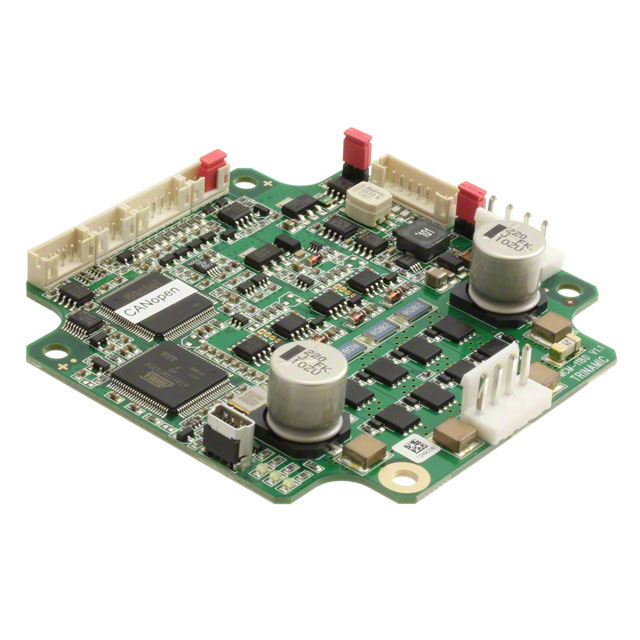

TMCM-1180-CANOPEN
STEPPER DRIVER 5.5A 18-55V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1180-CANOPEN is a single-axis stepper motor controller and driver board. This bipolar stepper driver supports load voltages from 18V to 55V and delivers a continuous output current of 5.5A. Featuring a robust CANopen interface, it also includes RS-232, RS-485, Step/Direction, and USB connectivity options for versatile integration into automation systems. The board is designed for chassis mounting and operates within a temperature range of -20°C to 50°C. This component is commonly deployed in industrial automation, robotics, and motion control applications where precise and reliable stepper motor operation is critical.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 75 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 5.5A |
| Interface | CAN, RS-232, RS-485, Step / Direction, USB |
| Type | Board |
| Operating Temperature | -20°C ~ 50°C |
| Voltage - Supply | 24 ~ 48VDC |
| Voltage - Load | 18 ~ 55V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
