TMCM-1161
STEPPER DRIVER 2.8A 10-30V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More

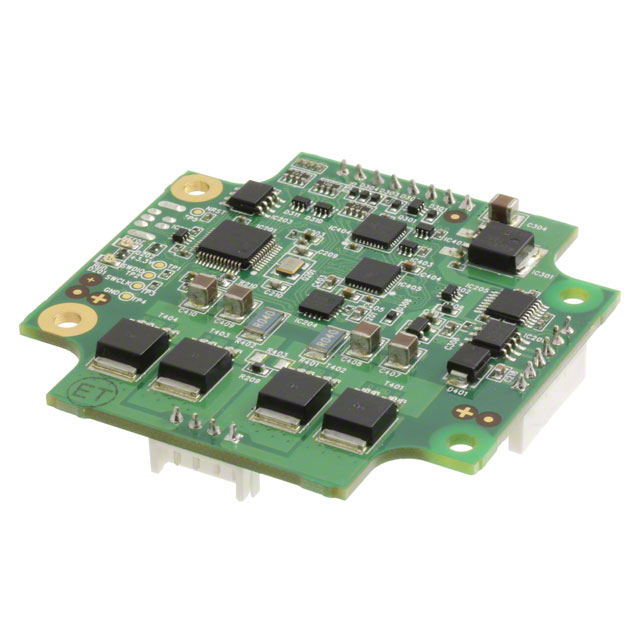

The Analog Devices Inc./Maxim Integrated TMCM-1161 is a bipolar stepper motor controller board, part of the TMCM series. This module is designed for robust operation, supporting a 24VDC supply voltage and delivering up to 2.8A per phase to the motor load, with a specified load voltage range of 10 to 30V. Its interface capabilities include RS-232, RS-485, and USB, facilitating diverse communication protocols for system integration. The unit is suitable for chassis mounting and features a single-motor drive capability. Operating within a temperature range of -35°C to 50°C, this component finds application in automation, robotics, and industrial control systems where precise stepper motor positioning is critical.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 71 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 2.8A |
| Interface | RS-232, RS-485, USB |
| Type | Board |
| Operating Temperature | -35°C ~ 50°C |
| Voltage - Supply | 24VDC |
| Voltage - Load | 10 ~ 30V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
