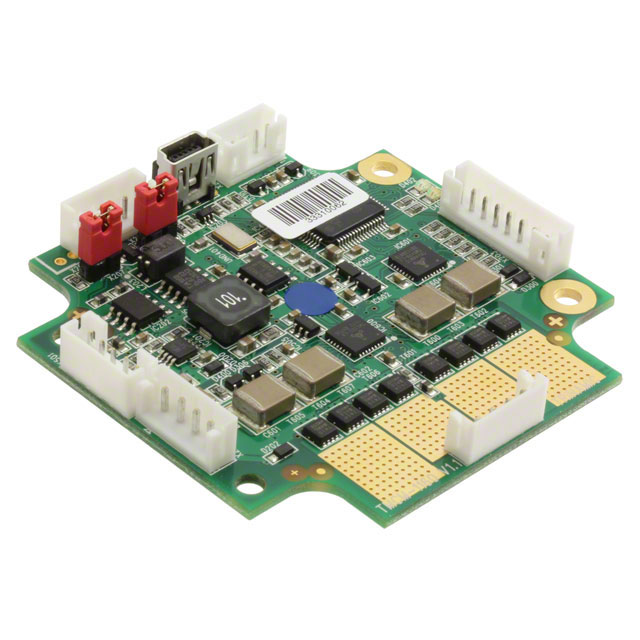

TMCM-1160-CANOPEN
STEPPER DRIVER 2.8A 9-51V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1160-CANOPEN is a single-axis stepper motor controller and driver board. This bipolar stepper driver supports a load voltage range of 9V to 51V and an output current of up to 2.8A per phase. The TMCM series module offers flexible interface options including CANopen, RS-485, Step/Direction, and USB for streamlined integration into industrial automation and motion control systems. Its robust design is suitable for applications requiring precise stepper motor movement and control, commonly found in robotics, industrial machinery, and advanced manufacturing equipment. The board is designed for chassis mounting and operates within an ambient temperature range of 0°C to 40°C.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 2.8A |
| Interface | CAN, RS-485, Step / Direction, USB |
| Type | Board |
| Operating Temperature | 0°C ~ 40°C |
| Voltage - Supply | 12 ~ 48VDC |
| Voltage - Load | 9 ~ 51V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
