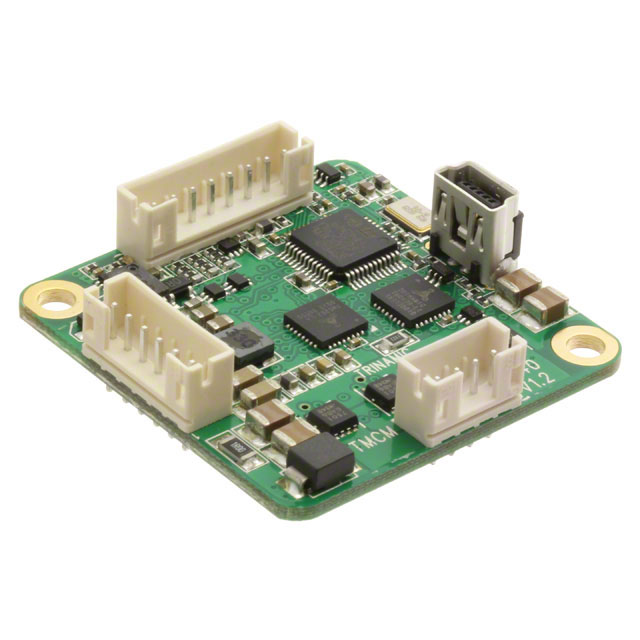

TMCM-1140-TMCL
STEPPER DRIVER 2.8A 9-28V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1140-TMCL is a single-axis stepper motor driver module designed for bipolar stepper motors. It operates with a supply voltage range of 12 to 24VDC and provides a load voltage of 9 to 28V. The module delivers an output current of up to 2.8A per phase, enabling robust control for demanding applications. Communication interfaces include RS-485, Step/Direction, and USB, offering versatility in system integration. This chassis-mount module is ideal for industrial automation, robotics, and medical equipment where precise motor control is critical.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 71 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 2.8A |
| Interface | RS-485, Step / Direction, USB |
| Type | Board |
| Operating Temperature | -30°C ~ 50°C |
| Voltage - Supply | 12 ~ 24VDC |
| Voltage - Load | 9 ~ 28V |
| Number of Motors | 1 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
