MAXQ7665BATM+
IC MCU 16BIT 64KB FLASH 48TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAXQ® microcontroller, part number MAXQ7665BATM-. This 16-bit MCU operates at 8MHz, featuring 64KB (32K x 16) of FLASH program memory and 256 x 16 RAM. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Connectivity options encompass CANbus, LINbus, and UART/USART. The device incorporates 8 analog inputs with an 8x12b A/D converter and a 1x12b D/A converter. Housed in a 48-SQFN (7x7) surface mount package, it operates within a temperature range of -40°C to 125°C (TA) and supports a voltage supply from 2.7V to 5.25V. This component is suitable for automotive and industrial applications.
Additional Information
Series: MAXQ®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 64KB (32K x 16) |
| RAM Size | 256 x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | - |
| Data Converters | A/D 8x12b; D/A 1x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.25V |
| Connectivity | CANbus, LINbus, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 48-SQFN (7x7) |
| Number of I/O | 8 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

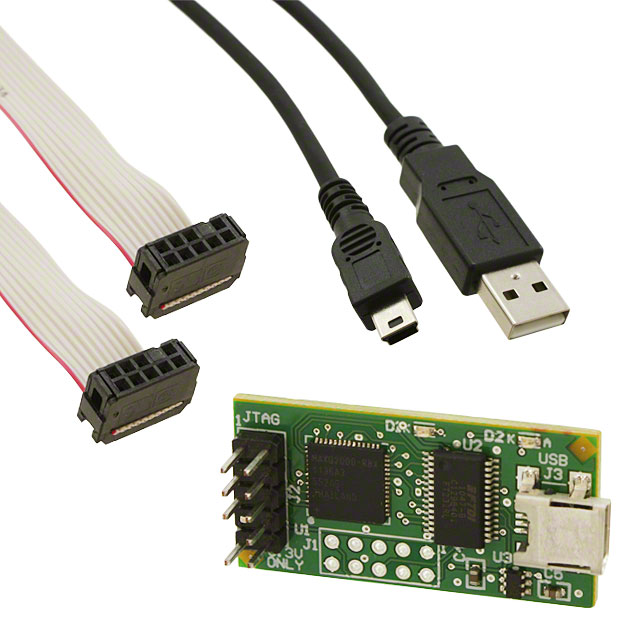

MAXQUSBJTAG-KIT#
MAXQ USB JTAG EVAL BOARD
MAXQSERIALJTAG-KIT
MAXQ SERIAL/JTAG EVAL BOARD

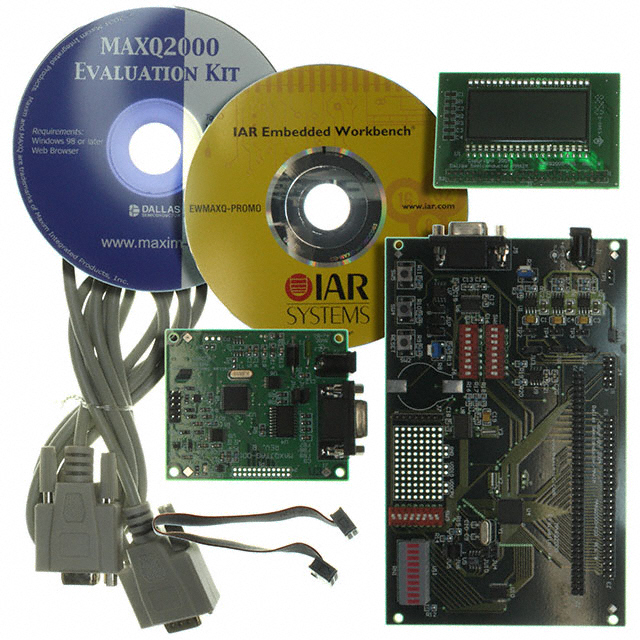

MAXQ2000-KIT
