MAX32670GTL+
IC MCU 32BIT 384KB FLASH 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More

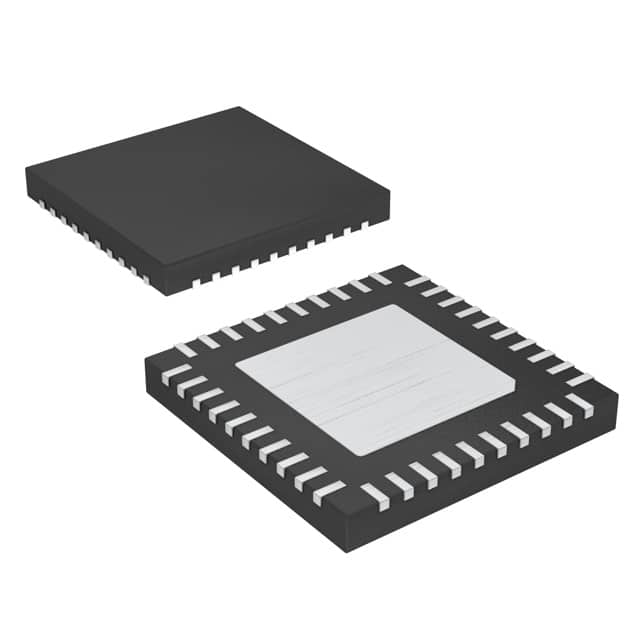

Analog Devices Inc./Maxim Integrated MAX32670GTL- is a 32-bit ARM Cortex-M4F microcontroller. This single-core processor operates at 100MHz and features 384KB of FLASH program memory (384K x 8) and 160KB of RAM. Connectivity options include 4-Wire, I2C, SPI, and UART/USART interfaces. The device offers 31 I/O pins and integrates peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. It is supplied in a 40-TQFN (5x5) package with an exposed pad, suitable for surface mounting. The operating temperature range is -40°C to 105°C (TA), with a supply voltage of 1.71V to 3.6V. This component finds application in industrial control, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 384KB (384K x 8) |
| RAM Size | 160K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | 4-Wire, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 40-TQFN (5x5) |
| Number of I/O | 31 |
| Programmable | Not Verified |
