MAX32660GWEBL+T
IC MCU 32BIT 256KB FLSH 16WLPBGAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More

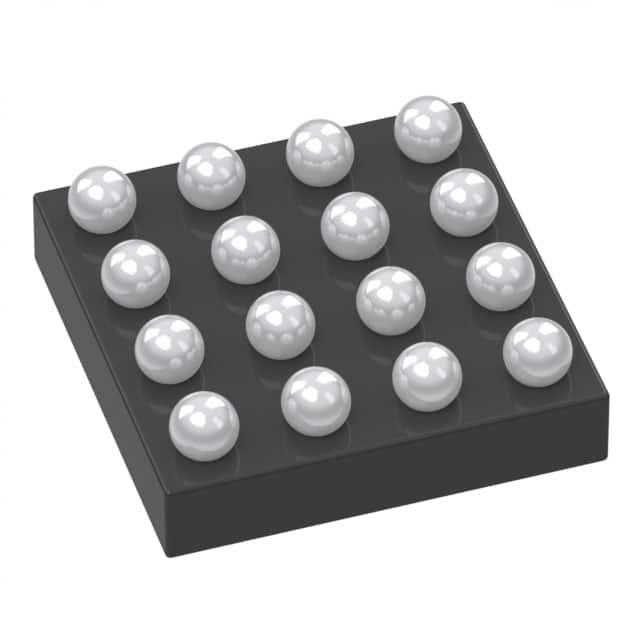

Analog Devices Inc./Maxim Integrated DARWIN Series microcontroller, part number MAX32660GWEBL-T. This 32-bit ARM Cortex-M4F microcontroller features a single-core architecture operating at 96MHz. It offers 256KB of FLASH program memory and 96KB of SRAM. Connectivity options include I2C, SPI, and UART/USART interfaces. The device is packaged in a compact 16-WLPBGA (1.57x1.55) for surface mounting. Peripherals include Brown-out Detect/Reset, DMA, I2S, POR, PWM, and WDT. This component operates within a temperature range of -40°C to 105°C and is supplied in Tape & Reel packaging. It is suitable for applications in wearables and industrial automation.
Additional Information
Series: DARWINRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Speed | 96MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 16-WLPBGA (1.57x1.55) |
| Number of I/O | 14 |
| Programmable | Not Verified |
