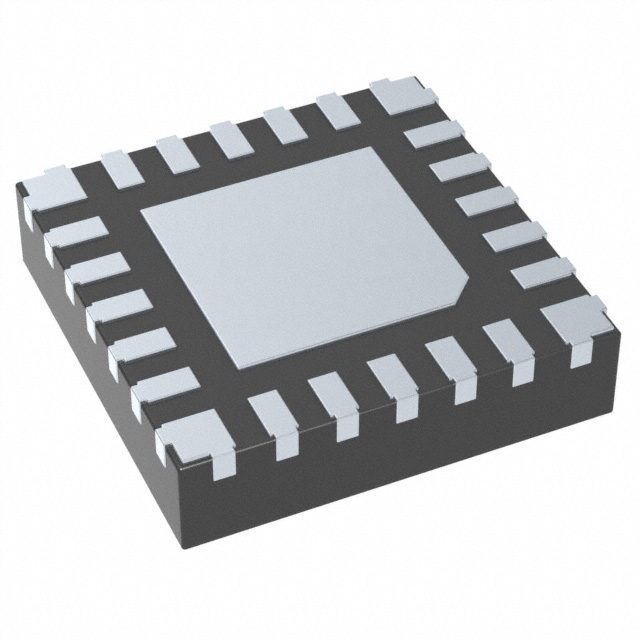

MAX32660GTGBL+T
IC MCU 32BIT 256KB FLASH 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DARWIN series ARM Cortex-M4F microcontroller, part number MAX32660GTGBL-T. This 32-bit single-core MCU operates at 96MHz and features 256KB of FLASH program memory and 96KB of RAM. Connectivity options include I2C, SPI, and UART/USART interfaces. The 24-TQFN (3x3) package is surface mountable. Integrated peripherals include DMA, WDT, and PWM. This component is suitable for applications in industrial automation, medical devices, and consumer electronics. Operating temperature range is -40°C to 105°C.
Additional Information
Series: DARWINRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 96MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 24-TQFN (3x3) |
| Number of I/O | 14 |
| Programmable | Not Verified |
