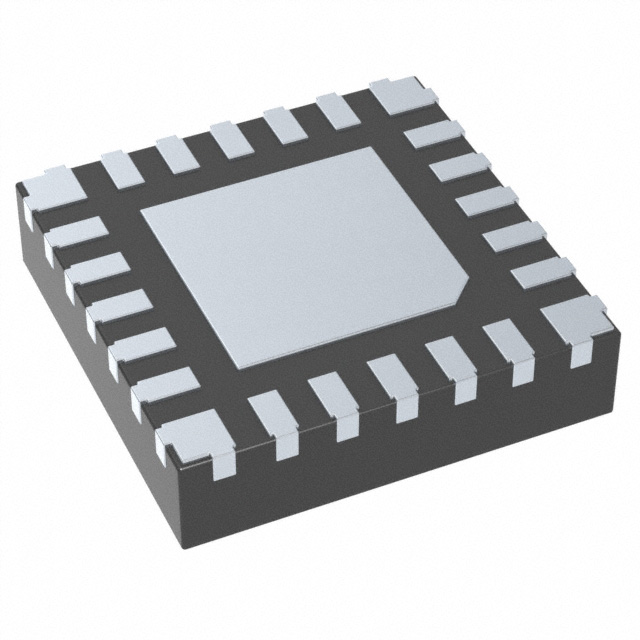

MAX32660GTGBL+
IC MCU 32BIT 256KB FLASH 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DARWIN series ARM Cortex-M4F microcontroller, part number MAX32660GTGBL-. This 32-bit single-core device operates at 96MHz and features 256KB of FLASH program memory. It offers 96KB of RAM and includes peripherals such as DMA, I2S, PWM, and WDT. Connectivity options include I2C, SPI, and UART/USART interfaces. The microcontroller is housed in a 24-TQFN (3x3) package and supports surface mount installation. Operating within a temperature range of -40°C to 105°C, this component is suitable for applications in wearables, industrial control, and medical devices. The supply voltage range is 1.71V to 3.63V.
Additional Information
Series: DARWINRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 96MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 24-TQFN (3x3) |
| Number of I/O | 14 |
| Programmable | Not Verified |
