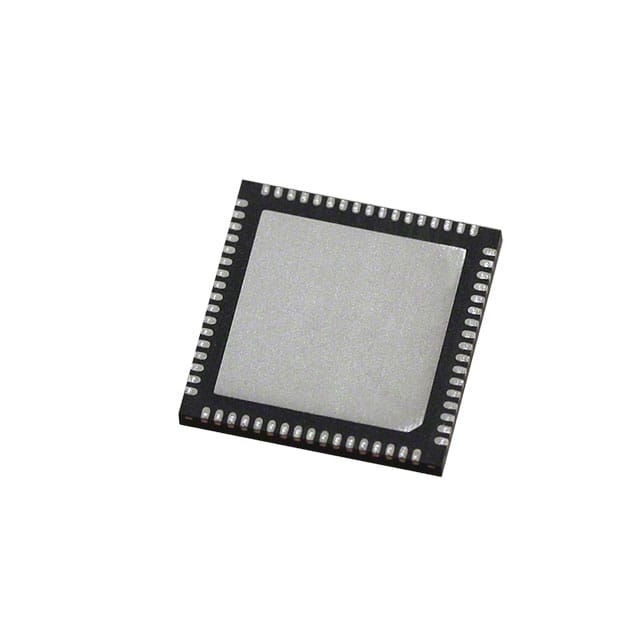

MAX32625ITKL+T
IC MCU 32BIT 256KB FLASH 68TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DARWIN series microcontroller, part number MAX32625ITKL-T. This 32-bit ARM Cortex-M4F single-core processor operates at 96MHz, featuring 256KB of FLASH program memory and 128KB of RAM. Connectivity options include 1-Wire, I2C, SPI, UART/USART, and USB. Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. The device offers 4x10-bit Analog-to-Digital converters. Housed in a 68-TQFN (8x8) exposed pad package, this surface-mount component operates within an ambient temperature range of -30°C to 85°C. Its supply voltage ranges from 1.14V to 3.6V. This component is commonly utilized in wearable technology, industrial control, and medical devices.
Additional Information
Series: DARWINRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 96MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 4x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.6V |
| Connectivity | 1-Wire, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 68-TQFN (8x8) |
| Number of I/O | 40 |
| Programmable | Not Verified |
