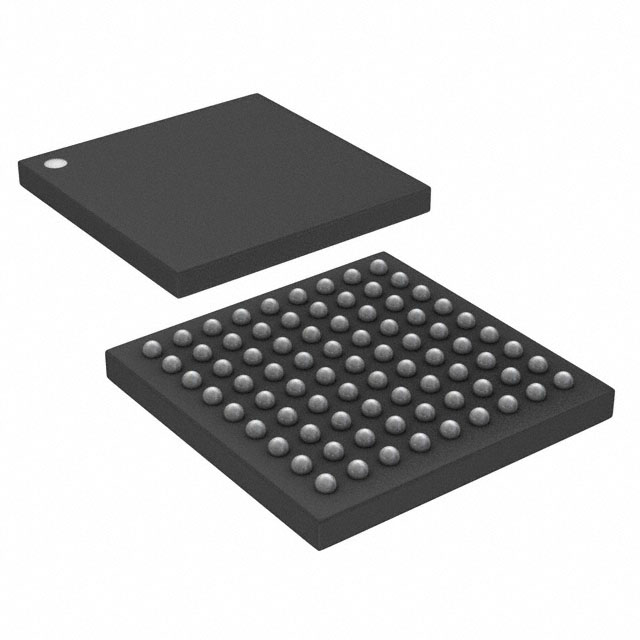

MAX32620IWGL+

IC MCU 32BIT 1MB FLASH 81WLP

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: Microcontrollers

Quality Control: Learn More

Analog Devices Inc./Maxim Integrated DARWIN Series microcontroller, part number MAX32620IWGL-. This 32-bit single-core ARM Cortex-M4F processor operates at 96MHz and features 1MB of FLASH program memory. It is housed in an 81-WLP (3.95x4.11) package and offers 256KB of RAM. Connectivity options include 1-Wire, I2C, SPI, UART/USART, and USB. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Data conversion is supported by 4x10b Sigma-Delta ADCs. This device is suitable for applications in the industrial, medical, and consumer electronics sectors. Mounting type is surface mount.

Additional Information

Series: DARWINRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:
Technical Details:
PackagingStrip
Package / Case81-WFBGA, WLBGA
Mounting TypeSurface Mount
Speed96MHz
Program Memory Size1MB (1M x 8)
RAM Size256K x 8
Operating Temperature-30°C ~ 85°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorARM® Cortex®-M4F
Data ConvertersA/D 4x10b Sigma-Delta
Core Size32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)1.14V ~ 3.6V
Connectivity1-Wire, I2C, SPI, UART/USART, USB
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package81-WLP (3.95x4.11)
Number of I/O49
ProgrammableNot Verified

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

By providing a telephone number and submitting the form, you are consenting to be contacted by SMS text message and agreeing to our Privacy Policy. Message frequency may vary. Message and data rates may apply. Reply STOP to opt out of further messaging. Reply HELP for more information.
Clients Also Buy
Microcontroller FAQs

A microcontroller is a compact integrated circuit that combines a processor, memory, and input/output peripherals for embedded control applications.

Microcontrollers execute programmed instructions to process sensor inputs and control outputs such as motors, displays, and communication interfaces.

Microcontrollers are commonly used in:

  • Automotive systems
  • Robotics
  • IoT devices
  • Industrial automation
  • Household appliances
  • Smart electronics

Microcontrollers integrate memory and peripherals on-chip for dedicated tasks, while microprocessors are designed for higher-performance computing systems requiring external components.
