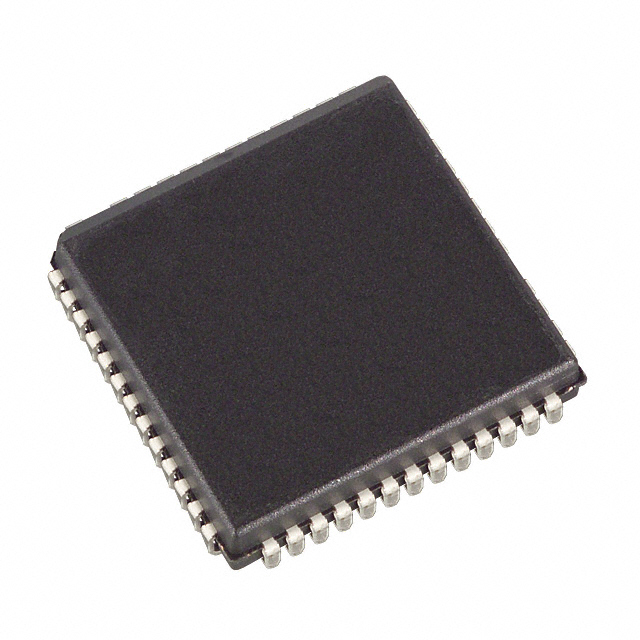

DS87C530-KCL
IC MCU 8BIT 16KB EPROM/UV 52CLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS87C530-KCL is an 8-bit 8051 microcontroller featuring a 33MHz core speed. This component offers 16KB of EPROM, UV erasable program memory and 1KB of RAM. Connectivity options include EBI/EMI, SIO, and UART/USART interfaces. Peripherals such as Power-Fail Reset and Watchdog Timer are integrated. The DS87C530-KCL is housed in a 52-CLCC (19.2x19.2) package with a window for UV erasure and requires an external oscillator. Its operating voltage range is 4.5V to 5.5V, and it operates within an ambient temperature range of 0°C to 70°C. This device is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: 87CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 52-CLCC, Window (J Lead) |
| Mounting Type | Surface Mount |
| Speed | 33MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, SIO, UART/USART |
| Peripherals | Power-Fail Reset, WDT |
| Supplier Device Package | 52-CLCC (19.2x19.2) |
| Number of I/O | 32 |
| Programmable | Not Verified |
