DS87C520-WCL

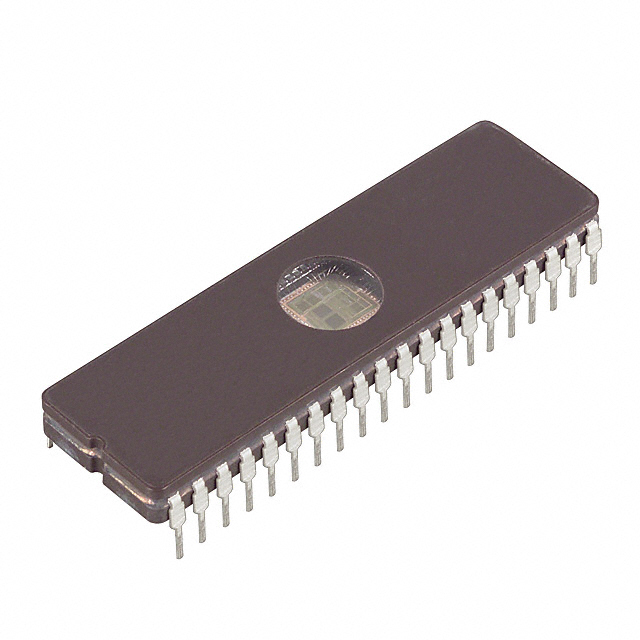

IC MCU 8B 16KB EPROM/UV 40CERDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated presents the DS87C520-WCL, an 8-bit microcontroller based on the 8051 core architecture. This component features a 16KB EPROM program memory, UV erasable, and operates at a maximum frequency of 33MHz. It includes 1KB of RAM and 32 general-purpose I/O pins. Connectivity options comprise EBI/EMI, SIO, and UART/USART interfaces. Peripherals include power-fail reset and a watchdog timer. The DS87C520-WCL is housed in a 40-CDIP windowed package, suitable for through-hole mounting, and operates within a temperature range of 0°C to 70°C. This device is commonly utilized in industrial automation and embedded control applications.
Additional Information
Series: 87CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-CDIP (0.600"", 15.24mm) Window |
| Mounting Type | Through Hole |
| Speed | 33MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, SIO, UART/USART |
| Peripherals | Power-Fail Reset, WDT |
| Supplier Device Package | 40-CDIP |
| Number of I/O | 32 |
| Programmable | Not Verified |
