DS2250T-32-16
IC MCU 8BIT 32KB NVSRAM 40SIMMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS225x series 8-bit microcontroller, part number DS2250T-32-16. This component features an 8051 core operating at 16MHz. It integrates 32KB (32K x 8) of NVSRAM for program memory, offering non-volatile data retention. Connectivity includes SIO and UART/USART interfaces. The device provides 32 general-purpose I/O pins and is housed in a 40-SIMM package. Integrated peripherals include Power-Fail Reset and a Watchdog Timer (WDT). The operating temperature range is 0°C to 70°C (TA), with a supply voltage requirement of 4.75V to 5.25V. This microcontroller is suitable for industrial automation and telecommunications applications.
Additional Information
Series: DS225xRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-SIMM |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | NVSRAM |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Connectivity | SIO, UART/USART |
| Peripherals | Power-Fail Reset, WDT |
| Supplier Device Package | 40-SIMM |
| Number of I/O | 32 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
73S1209F-44IMR/F
IC MCU 8BIT 32KB FLASH 44QFN
DS2250-8-8
DS2250 SOFT MCU MODULE

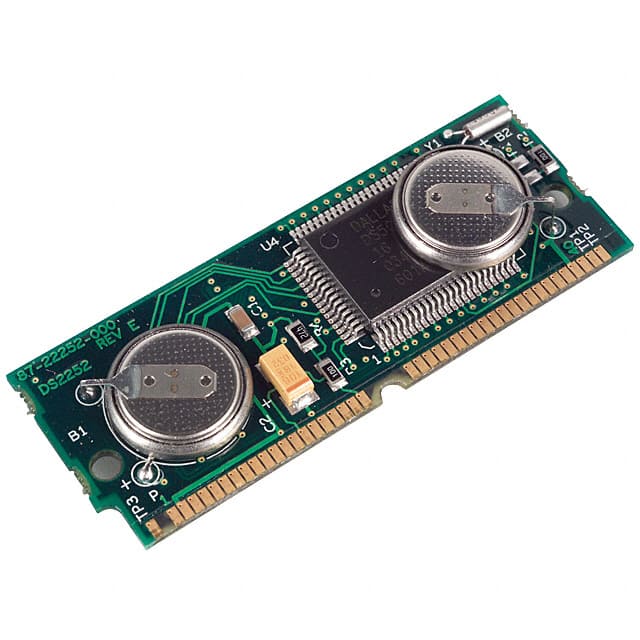

DS2250-64-16
