DS2502AX-500-00/T&R/
IC EPROM 1KBIT 1-WIRE 4WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More

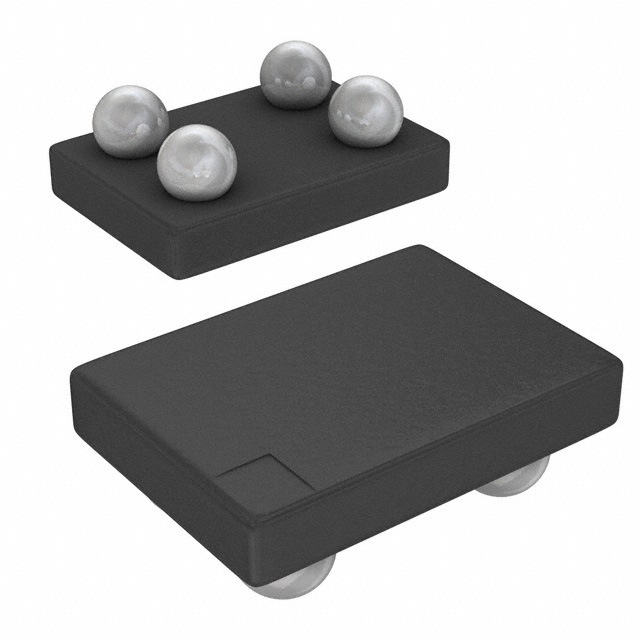

Analog Devices Inc./Maxim Integrated DS2502AX-500-00-T-R- is a 1Kbit Electrically Programmable Read-Only Memory (EPROM) with a 1-Wire interface. This non-volatile memory features an organization of 128 words by 8 bits, leveraging One-Time Programmable (OTP) EPROM technology. Housed in a compact 4-WLP (1.62x0.93) wafer-level chip-scale package, it is designed for surface-mount applications. The device operates across a supply voltage range of 2.8V to 6V and is rated for an ambient temperature range of -40°C to 85°C. Its unique 1-Wire interface simplifies communication and reduces pin count, making it suitable for applications in asset tracking, authentication, and industrial control systems requiring secure data storage and identification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 1Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.8V ~ 6V |
| Technology | EPROM - OTP |
| Memory Format | EPROM |
| Supplier Device Package | 4-WLP (1.62x0.93) |
| Write Cycle Time - Word, Page | - |
| Memory Interface | 1-Wire® |
| Memory Organization | 128 x 8 |
| Programmable | Not Verified |
