DS1345WP-100IND+
IC NVSRAM 1MBIT PAR 34PWRCAPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More

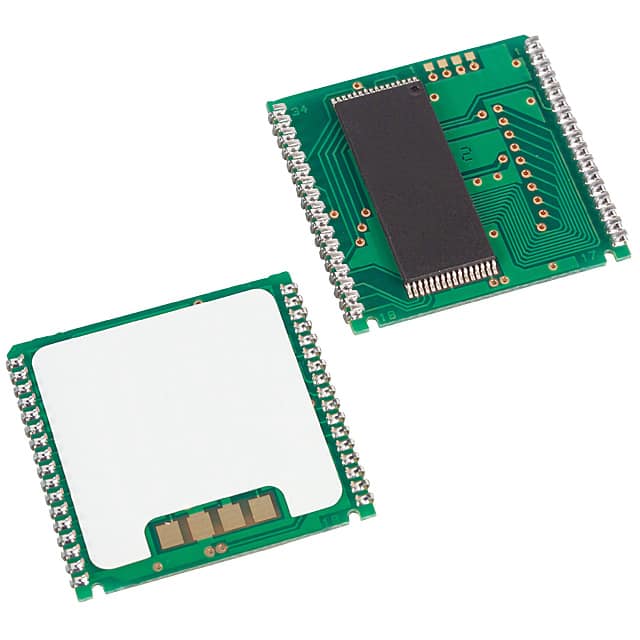

The Analog Devices Inc./Maxim Integrated DS1345WP-100IND- is a 1Mbit Non-Volatile SRAM (NVSRAM) memory integrated circuit. This component features a parallel interface and a 128K x 8 memory organization, offering a 100 ns access time. Designed for robust data retention, it operates within a 3V to 3.6V supply voltage range and supports a wide industrial temperature range of -40°C to 85°C. The device is housed in a 34-PowerCap™ Module package, suitable for surface mounting. Its non-volatile nature makes it ideal for applications requiring persistent data storage in the event of power loss, commonly found in industrial control systems, metering, and data logging equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 34-PowerCap™ Module |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.6V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 34-PowerCap Module |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
