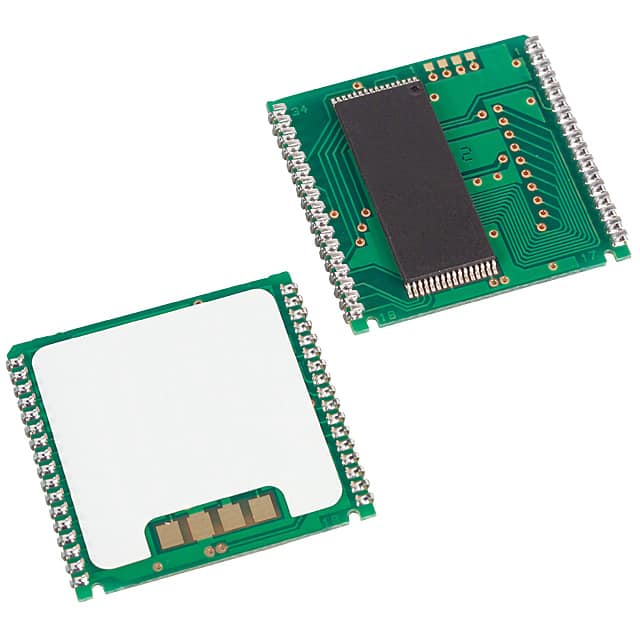

DS1345WP-100IND
IC NVSRAM 1MBIT PAR 34PWRCAPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1345WP-100IND is a 1Mbit Non-Volatile SRAM (NVSRAM) memory integrated circuit. This component features a parallel interface with an access time of 100 ns and a memory organization of 128K x 8. The DS1345WP-100IND operates within a voltage range of 3V to 3.6V and is housed in a 34-PowerCap™ Module package for surface mounting. Its NVSRAM technology ensures data retention without continuous power, making it suitable for applications requiring persistent storage. This device is commonly employed in industrial automation, telecommunications, and data logging systems where reliable data integrity is critical. The write cycle time for this NVSRAM is 100ns.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 34-PowerCap™ Module |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.6V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 34-PowerCap Module |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
