DS1270Y-70IND#
IC NVSRAM 16MBIT PARALLEL 36EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More

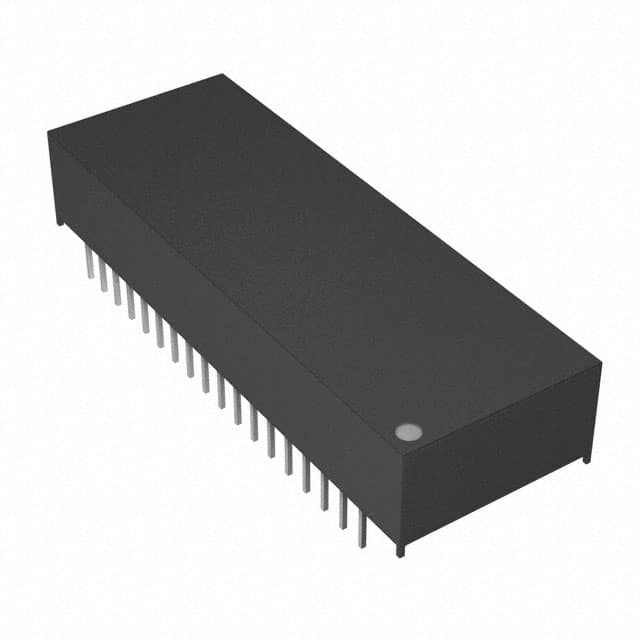

The Analog Devices Inc./Maxim Integrated DS1270Y-70IND- is a 16Mbit Non-Volatile SRAM (NVSRAM) memory component featuring a parallel interface. This device offers a fast access time of 70 ns and a memory organization of 2M x 8. The NVSRAM technology combines the speed of SRAM with non-volatility, retaining data even without power. It operates within a supply voltage range of 4.5V to 5.5V and is specified for an industrial operating temperature range of -40°C to 85°C. The component is supplied in a 36-EDIP package suitable for through-hole mounting. This memory solution is commonly employed in industrial automation, telecommunications, and data logging applications where persistent data storage at high speeds is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 36-EDIP |
| Write Cycle Time - Word, Page | 70ns |
| Memory Interface | Parallel |
| Access Time | 70 ns |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
Request a Quote
