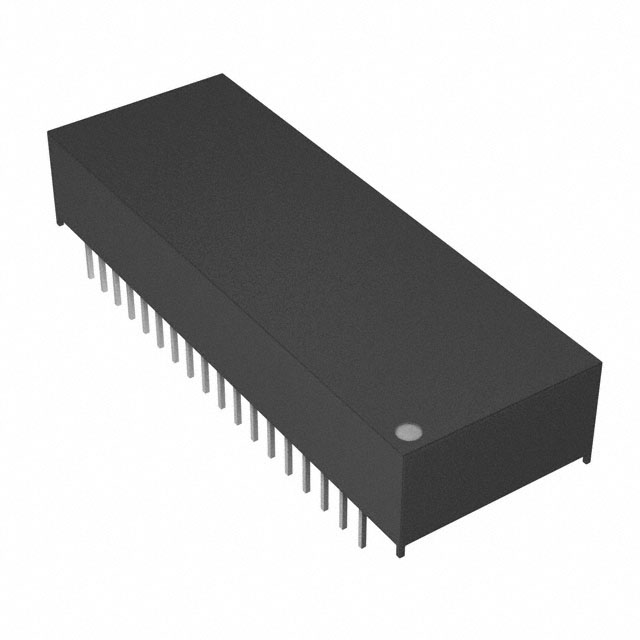

DS1270Y-70
IC NVSRAM 16MBIT PARALLEL 36EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1270Y-70 is a 16Mbit Non-Volatile SRAM memory IC featuring a parallel interface. This device offers a 70 ns access time and a 2M x 8 memory organization. Designed for through-hole mounting, it is supplied in a 36-EDIP package. The operating temperature range is 0°C to 70°C (TA) with a supply voltage requirement of 4.5V to 5.5V. The write cycle time is also rated at 70 ns. This component is commonly utilized in industrial control systems and data logging applications where data retention is critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 36-EDIP |
| Write Cycle Time - Word, Page | 70ns |
| Memory Interface | Parallel |
| Access Time | 70 ns |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
