DS1270W-150#
IC NVSRAM 16MBIT PARALLEL 36EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1270W-150- is a 16Mbit Non-Volatile SRAM (NVSRAM) memory integrated circuit. Featuring a parallel interface and a 2M x 8 organization, this component offers an access time of 150 ns. The NVSRAM technology ensures data retention without external power, making it suitable for critical applications requiring persistent memory storage. The device operates within a voltage range of 3V to 3.6V and has a write cycle time of 150 ns. It is housed in a 36-EDIP through-hole package, measuring 0.610 inches (15.49mm). The operating temperature range is 0°C to 70°C. This component is commonly utilized in industrial control systems, data logging equipment, and embedded systems where reliable data persistence is paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 3V ~ 3.6V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 36-EDIP |
| Write Cycle Time - Word, Page | 150ns |
| Memory Interface | Parallel |
| Access Time | 150 ns |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

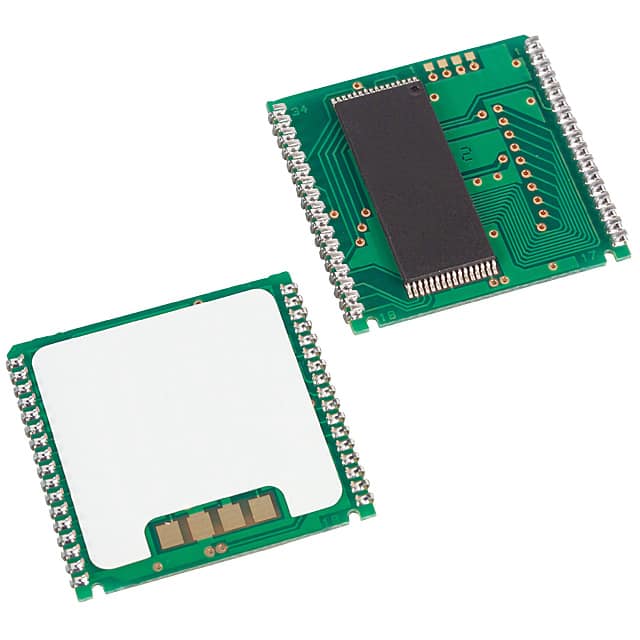

DS1345ABP-70+
