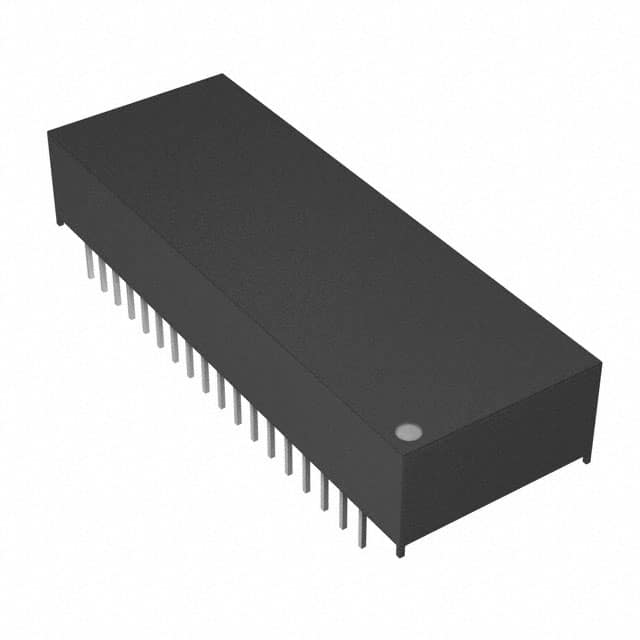

DS1270AB-100#
IC NVSRAM 16MBIT PARALLEL 36EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1270AB-100- is a 16Mbit NVSRAM memory component featuring a parallel interface. This non-volatile SRAM offers a fast 100 ns access time and a 100 ns write cycle time, supporting data retention without external power. The memory is organized as 2M x 8 bits, providing ample storage for critical data. Designed for through-hole mounting, it is supplied in a 36-EDIP package suitable for industrial and mission-critical applications. Its robust construction and reliable data integrity make it ideal for use in industrial automation, telecommunications infrastructure, and data logging systems. The device operates within a voltage range of 4.75V to 5.25V and functions across an ambient temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 36-EDIP |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
