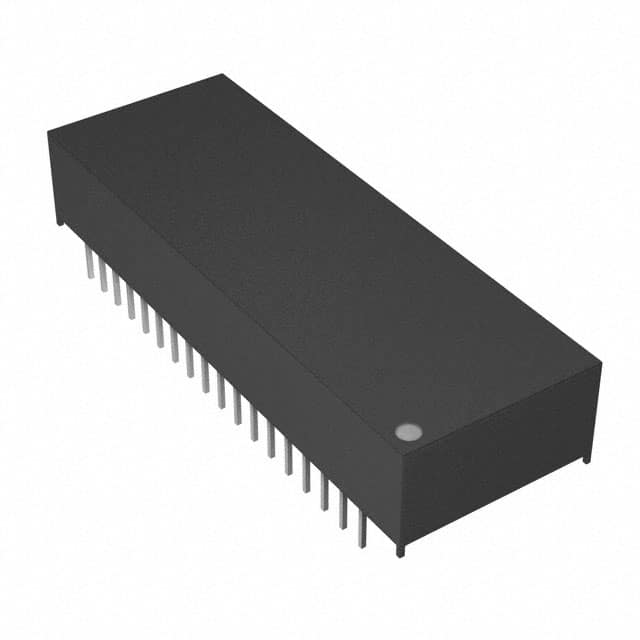

DS1265AB-70IND+
IC NVSRAM 8MBIT PARALLEL 36EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
This Analog Devices Inc./Maxim Integrated NVSRAM (Non-Volatile SRAM) memory component, part number DS1265AB-70IND-, offers an 8Mbit (1M x 8) memory organization with a fast 70 ns access time. It features a parallel interface and operates within a voltage range of 4.75V to 5.25V. Designed for through-hole mounting, it is supplied in a 36-EDIP package. The NVSRAM technology ensures data retention without external power, making it suitable for applications requiring persistent storage of critical data. The operating temperature range is -40°C to 85°C (TA). This component finds application in industrial control systems, telecommunications infrastructure, and data logging equipment where reliable, non-volatile data storage is essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 36-EDIP |
| Write Cycle Time - Word, Page | 70ns |
| Memory Interface | Parallel |
| Access Time | 70 ns |
| Memory Organization | 1M x 8 |
| Programmable | Not Verified |
