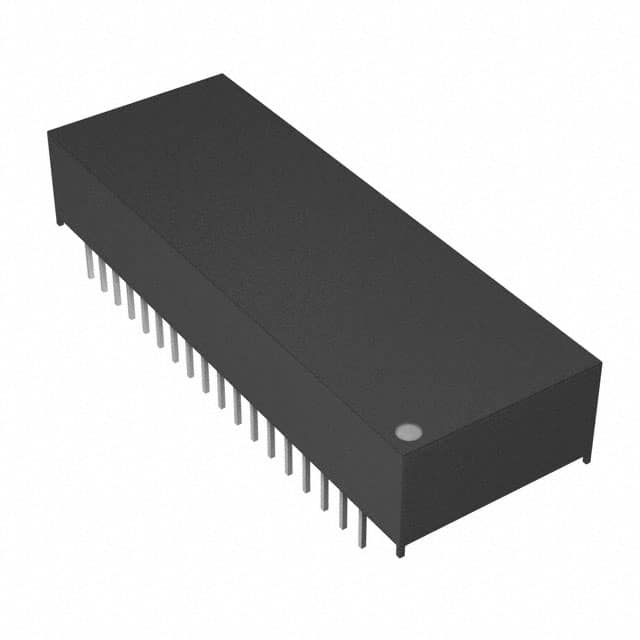

DS1265AB-100+
IC NVSRAM 8MBIT PARALLEL 36EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1265AB-100- is an 8Mbit Non-Volatile SRAM (NVSRAM) memory device featuring a parallel interface. This component offers a 1M x 8 memory organization and boasts a fast access time of 100 ns. Designed for reliable data retention without external components, it operates within a voltage range of 4.75V to 5.25V. The device is housed in a 36-EDIP package suitable for through-hole mounting. Typical applications for this NVSRAM include industrial control systems, data logging, and embedded systems requiring persistent data storage. Its write cycle time for word and page operations is 100 ns, and it operates within an ambient temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 36-DIP Module (0.610"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 36-EDIP |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 1M x 8 |
| Programmable | Not Verified |
