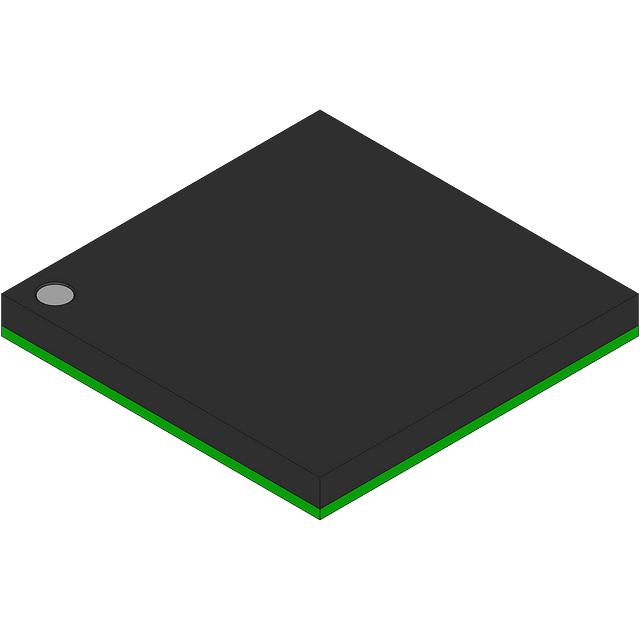

DS1254YB2-100
2M X 8 NV SRAM, PHANTOM CLOCKManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS1254YB2-100 is a 16Mbit Non-Volatile SRAM (NVSRAM) with a parallel interface. This component features a memory organization of 2M x 8 and a fast access time of 100 ns. Its NVSRAM technology inherently retains data without requiring external power, making it suitable for applications where data persistence is critical. The device operates within a supply voltage range of 3V to 3.7V and has a write cycle time of 100 ns. It is supplied in a 168-BGA (16x16) package for surface mounting. This NVSRAM is commonly utilized in industrial control systems, telecommunications infrastructure, and data logging equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 168-BBGA |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 3V ~ 3.7V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 168-BGA (16x16) |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
