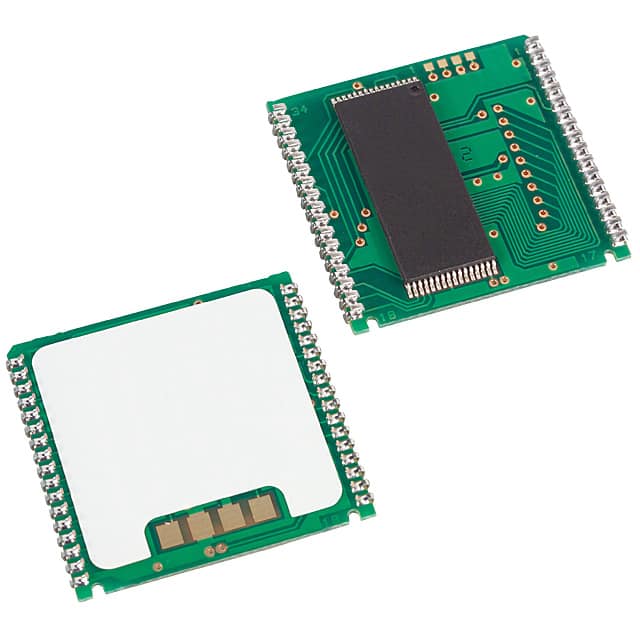

DS1245YP-100+
IC NVSRAM 1MBIT PAR 34PWRCAPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS1245YP-100- is a 1Mbit Non-Volatile SRAM (NVSRAM) memory device featuring a parallel interface. This component offers a 100 ns access time and a memory organization of 128K x 8. The NVSRAM technology ensures data retention without external power, leveraging an integrated power cap for seamless operation. Designed for reliability, it operates within a 4.5V to 5.5V supply voltage range and has a word/page write cycle time of 100 ns. The DS1245YP-100- is housed in a 34-PowerCap™ Module package, suitable for surface mount applications. This device finds utility in industrial control, telecommunications, and consumer electronics where persistent data storage is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 34-PowerCap™ Module |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 34-PowerCap Module |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
