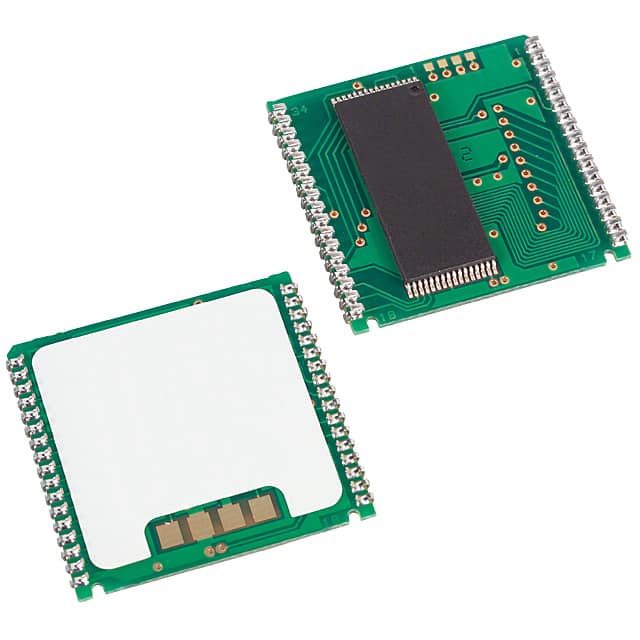

DS1230ABP-100+
IC NVSRAM 256KBIT PAR 34PWRCAPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's DS1230ABP-100- is a 256Kbit Non-Volatile SRAM (NVSRAM) memory integrated circuit. This device features a parallel memory interface with a 32K x 8 organization, offering a quick 100 ns access time. The NVSRAM technology ensures data retention without external power, facilitated by an integrated power management system within the 34-PowerCap™ Module package. Operating within a voltage range of 4.75V to 5.25V, it is suitable for applications requiring persistent data storage and rapid read/write cycles, such as industrial control systems and data acquisition. The component is supplied in Tray packaging and operates from 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 34-PowerCap™ Module |
| Mounting Type | Surface Mount |
| Memory Size | 256Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 34-PowerCap Module |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 32K x 8 |
| Programmable | Not Verified |
