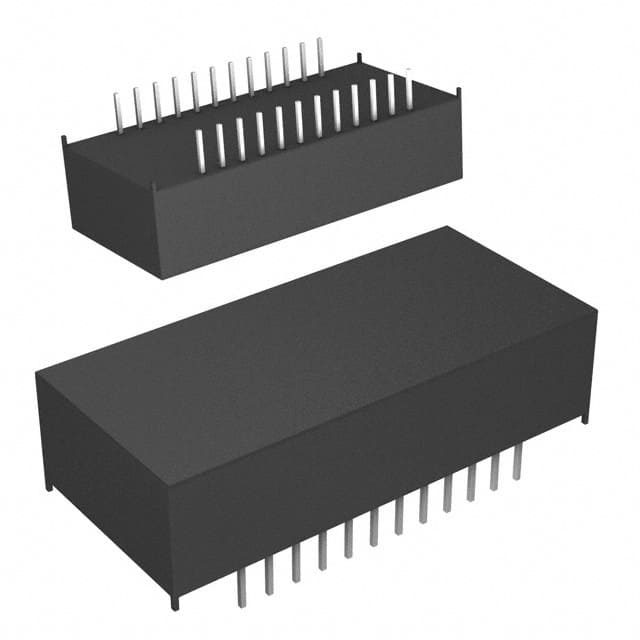

DS1220AD-200IND+
IC NVSRAM 16KBIT PARALLEL 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS1220AD-200IND- is a 16Kbit Non-Volatile SRAM (NVSRAM) memory component featuring a parallel interface. This device offers a fast 200 ns access time, enabling efficient data read and write operations. The memory is organized as 2K x 8 and operates within a voltage range of 4.5V to 5.5V. Designed for through-hole mounting, it is supplied in a 24-EDIP package. The operating temperature range is -40°C to 85°C, making it suitable for various industrial applications. This NVSRAM technology provides data retention without external power, ideal for applications requiring persistent memory storage in systems such as industrial control, data logging, and embedded systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 24-EDIP |
| Write Cycle Time - Word, Page | 200ns |
| Memory Interface | Parallel |
| Access Time | 200 ns |
| Memory Organization | 2K x 8 |
| Programmable | Not Verified |
