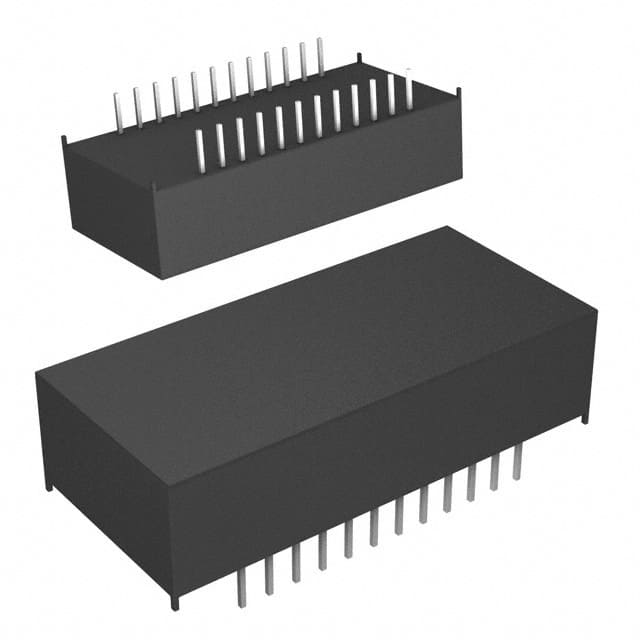

DS1220AD-150+
IC NVSRAM 16KBIT PARALLEL 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated presents the DS1220AD-150, a 16Kbit Non-Volatile SRAM (NVSRAM) memory component. This device features a parallel interface with a memory organization of 2K x 8 and offers an access time of 150 ns. The DS1220AD-150 operates within a voltage supply range of 4.5V to 5.5V and has a write cycle time of 150 ns. Housed in a 24-EDIP package, it is designed for through-hole mounting. This component is suitable for applications requiring data retention in industrial control systems and telecommunications equipment. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 24-EDIP |
| Write Cycle Time - Word, Page | 150ns |
| Memory Interface | Parallel |
| Access Time | 150 ns |
| Memory Organization | 2K x 8 |
| Programmable | Not Verified |
