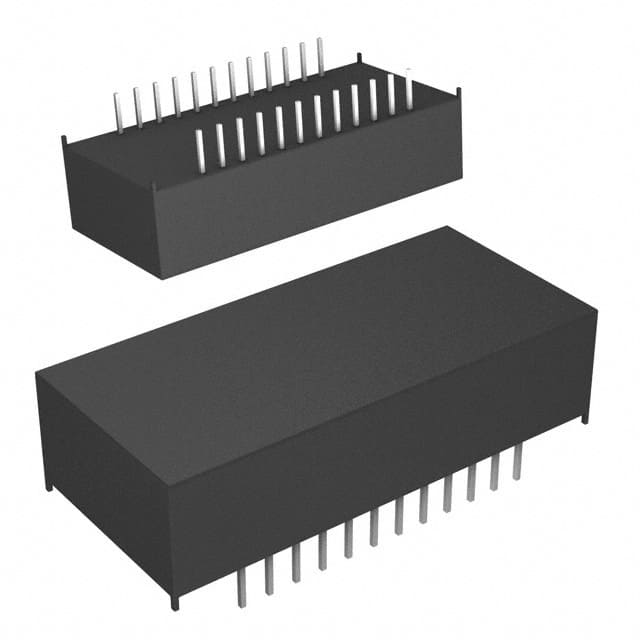

DS1220AB-200IND+
IC NVSRAM 16KBIT PARALLEL 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS1220AB-200IND- is a 16Kbit Non-Volatile SRAM (NVSRAM) memory component featuring a parallel interface. This device offers a fast access time of 200 ns and a write cycle time of 200 ns. Its memory organization is 2K x 8, and it operates within a voltage supply range of 4.75V to 5.25V. The DS1220AB-200IND- is housed in a 24-EDIP package, designed for through-hole mounting. It operates reliably across an industrial temperature range of -40°C to 85°C. This component finds application in various industrial automation, control systems, and data logging equipment where persistent data storage is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 24-EDIP |
| Write Cycle Time - Word, Page | 200ns |
| Memory Interface | Parallel |
| Access Time | 200 ns |
| Memory Organization | 2K x 8 |
| Programmable | Not Verified |
