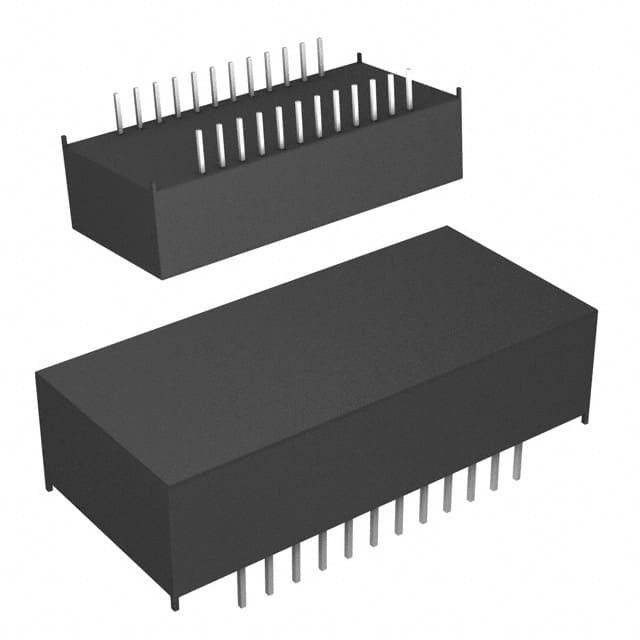

DS1220AB-150+
IC NVSRAM 16KBIT PARALLEL 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1220AB-150- is a 16Kbit Non-Volatile Static Random-Access Memory (NVSRAM) with a parallel interface. This component offers an access time of 150 ns, enabling rapid data retrieval. The memory is organized as 2K x 8 bits and operates within a supply voltage range of 4.75V to 5.25V. Featuring a 24-EDIP package, the DS1220AB-150- is designed for through-hole mounting and operates in an ambient temperature range of 0°C to 70°C. Its write cycle time is also 150 ns. This NVSRAM is suitable for applications requiring persistent data storage combined with the speed of SRAM, commonly found in industrial control, data logging, and embedded systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 24-EDIP |
| Write Cycle Time - Word, Page | 150ns |
| Memory Interface | Parallel |
| Access Time | 150 ns |
| Memory Organization | 2K x 8 |
| Programmable | Not Verified |
