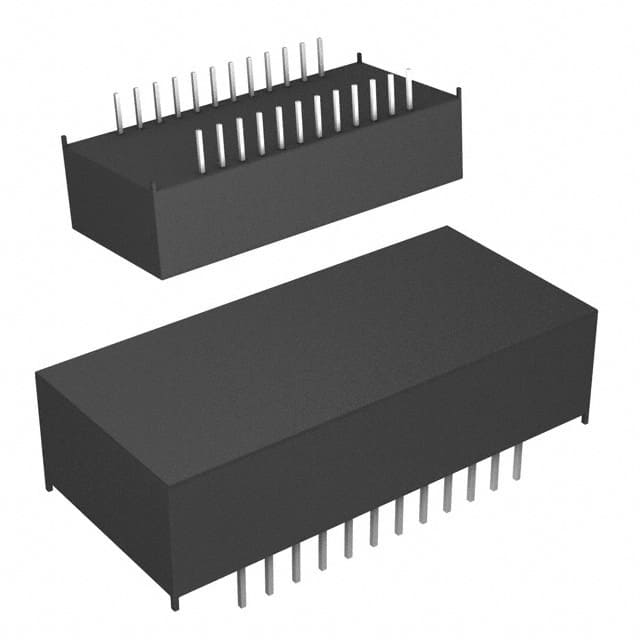

DS1220AB-120+
IC NVSRAM 16KBIT PARALLEL 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1220AB-120- is a 16Kbit Non-Volatile SRAM memory IC featuring a 2K x 8 organization. This component offers a parallel interface with an access time of 120 ns, ensuring efficient data retrieval. The NVSRAM technology combines the speed of SRAM with the data retention of non-volatile memory, eliminating the need for external battery backup. Operating within a voltage range of 4.75V to 5.25V, and with a word/page write cycle time of 120ns, the DS1220AB-120- is designed for applications requiring reliable data storage and fast read/write operations. Its 24-EDIP package with through-hole mounting is suitable for robust board-level integration. This memory solution finds application in industrial control systems, data logging, and embedded systems where data integrity is paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 24-EDIP |
| Write Cycle Time - Word, Page | 120ns |
| Memory Interface | Parallel |
| Access Time | 120 ns |
| Memory Organization | 2K x 8 |
| Programmable | Not Verified |
