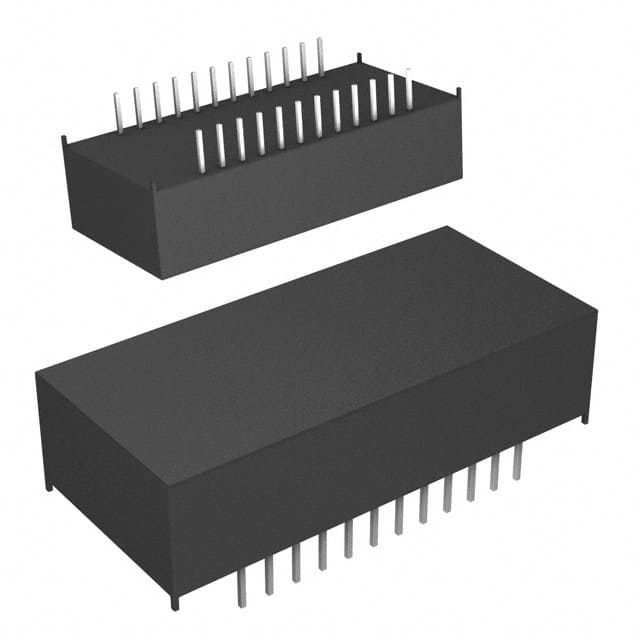

DS1220AB-100+
IC NVSRAM 16KBIT PARALLEL 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Memory
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1220AB-100- is a 16Kbit NVSRAM (Non-Volatile SRAM) memory integrated circuit. This component features a parallel interface with a memory organization of 2K x 8 and an access time of 100 ns. Designed for through-hole mounting, it is housed in a 24-EDIP package. The operating voltage range is 4.75V to 5.25V, with a write cycle time of 100ns. This NVSRAM technology offers the speed of SRAM with the non-volatility of EEPROM. It is commonly utilized in industrial control systems and embedded applications requiring persistent data storage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 16Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Format | NVSRAM |
| Supplier Device Package | 24-EDIP |
| Write Cycle Time - Word, Page | 100ns |
| Memory Interface | Parallel |
| Access Time | 100 ns |
| Memory Organization | 2K x 8 |
| Programmable | Not Verified |
