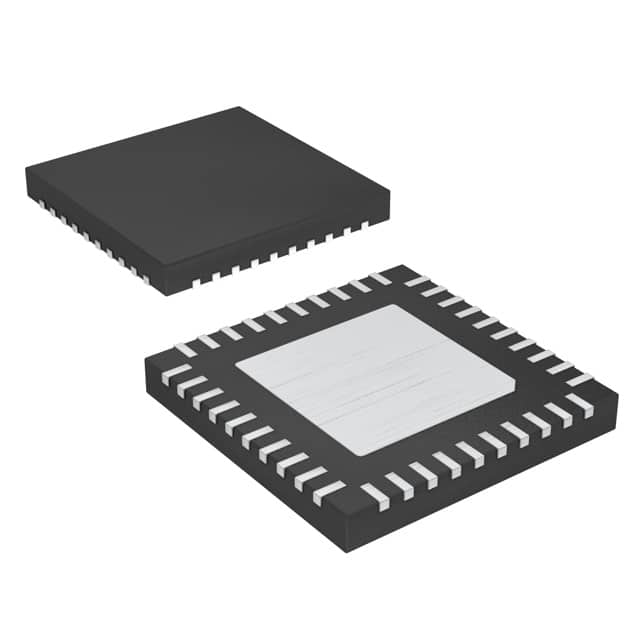

MAX8660BETL+T
IC REG 8OUT BUCK/LNR SYNC 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Linear + Switching
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX8660BETL-T is an advanced power management integrated circuit featuring eight distinct voltage regulators. This component consolidates four 2MHz synchronous step-down (buck) converters with four linear low-dropout (LDO) regulators. Designed for sophisticated power delivery, it offers flexible output configurations, with individual outputs capable of delivering up to 1.6A. The device operates from a 2.6V to 6V supply voltage and is housed in a compact 40-TQFN (5x5) package, suitable for surface mount applications. Its robust design supports operation across a wide temperature range of -40°C to 85°C. This regulator is commonly utilized in applications requiring multiple, precisely controlled voltage rails, including portable electronics and battery-powered devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.6V ~ 6V |
| Frequency - Switching | 2MHz |
| Topology | Step-Down (Buck) Synchronous (4), Linear (LDO) (4) |
| Supplier Device Package | 40-TQFN (5x5) |
| Voltage/Current - Output 1 | Selectable, 1.2A |
| Voltage/Current - Output 2 | Selectable, 900mA |
| Voltage/Current - Output 3 | 1.4V, 1.6A |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 8 |
