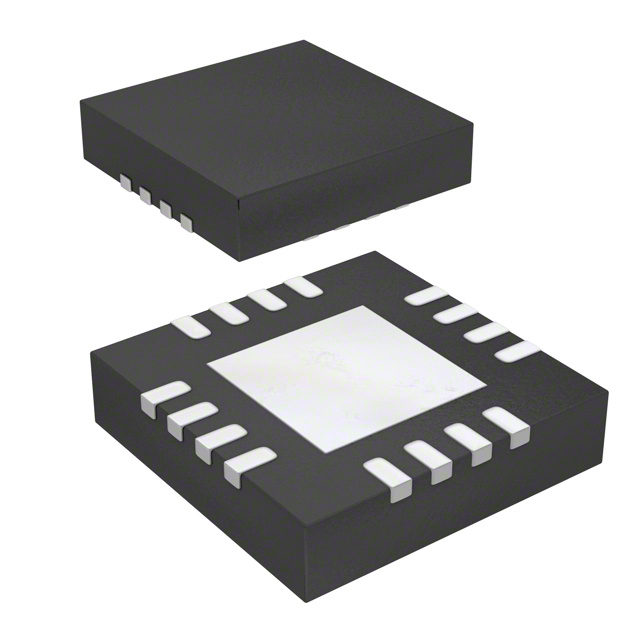

MAX5092AATE+T
IC REG DL BUCK/LNR 1MHZ 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Linear + Switching
Quality Control: Learn More
PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) (1), Linear (LDO) (1) 1MHz 16-TQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3.5V ~ 72V |
| Frequency - Switching | 1MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (1) |
| Supplier Device Package | 16-TQFN (5x5) |
| Voltage/Current - Output 1 | 7V/Adj to 11V, 250mA |
| Voltage/Current - Output 2 | 3.3V/1.5V ~ 9V, 250mA |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 2 |
