MAX8704EUB+

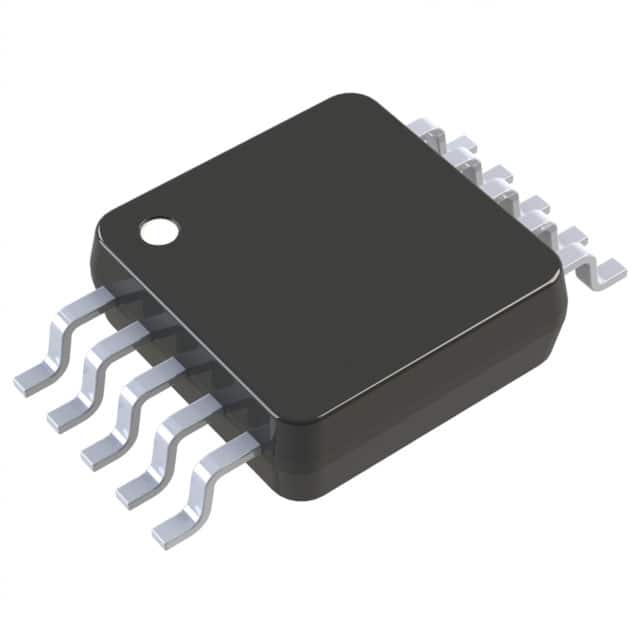

IC REG LINEAR POS ADJ 5A 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX8704EUB- is a linear voltage regulator IC designed for high-current applications. This single-output device provides an adjustable positive voltage with a maximum output current of 5A. Key control features include Enable, Power Good, Power Limit, and Soft Start, enhancing system management. Protection mechanisms such as Over Temperature and Under Voltage Lockout (UVLO) are integrated. The device operates with a quiescent current of 10 µA and a maximum input supply current of 3 mA. It is housed in a 10-uMAX/uSOP package suitable for surface mounting. The input voltage range extends up to 5.5V, with an output voltage configurable from 0.5V up to 5.5V. Operating temperature is rated from -40°C to 85°C. This component finds application in power supply circuits for various electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Adjustable (Fixed) |
| Mounting Type | Surface Mount |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 10-uMAX/uSOP |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.5V (1.2V, 1.5V) |
| Control Features | Enable, Power Good, Power Limit, Soft Start |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Protection Features | Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 3 mA |
