MAX8633ELA+T

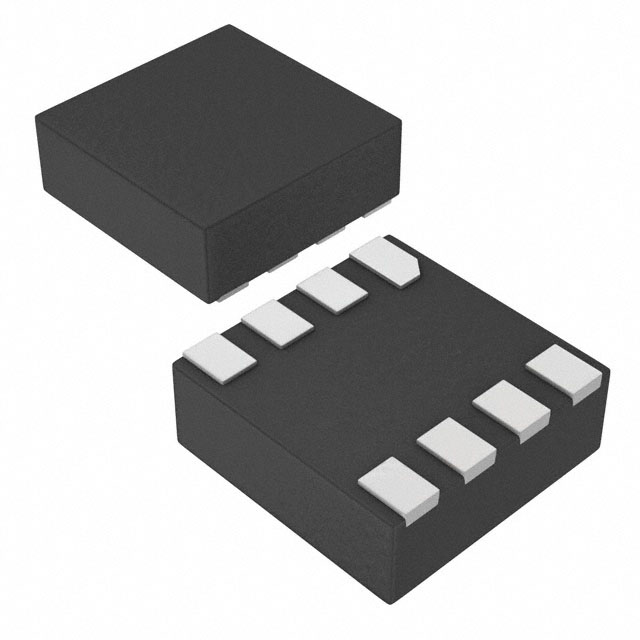

IC REG LIN POS PROG 300MA 8UDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX8633ELA-T is a dual-output, positive, programmable linear voltage regulator. This device delivers 300mA per output with a low dropout voltage of 0.2V at 100mA. Key features include an enable pin, a reset pin, and protection against over-current, over-temperature, and under-voltage lockout. The quiescent current is rated at 75 µA. The MAX8633ELA-T supports an input voltage range up to 5.5V, with programmable output voltages ranging from 1.5V to 2.8V for one output and 2.8V to 3V for the other. Power supply rejection ratio (PSRR) is specified between 60dB and 55dB across the 1kHz to 10kHz frequency range. This component is supplied in an 8-µDFN (2x2) package and is available on tape and reel. It is suitable for applications in portable electronics and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Current - Output | 300mA, 300mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 75 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-µDFN (2x2) |
| Voltage - Output (Max) | 2.8V, 3V |
| Voltage - Output (Min/Fixed) | 1.5V, 2.8V |
| Control Features | Enable, Reset |
| PSRR | 60dB ~ 55dB (1kHz ~ 10kHz) |
| Voltage Dropout (Max) | 0.2V @ 100mA, 0.2V @ 100mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
