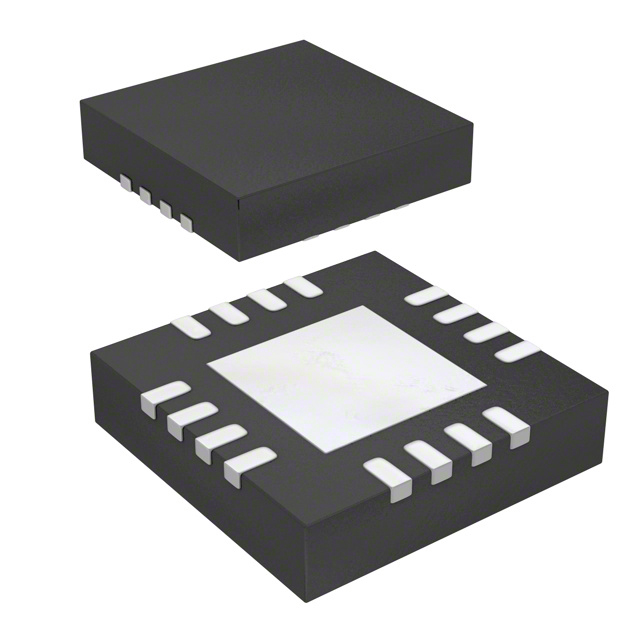

MAX8556ETE+
IC REG LINEAR POS ADJ 4A 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 4A 16-TQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.6 mA |
| Voltage - Input (Max) | 3.6V |
| Number of Regulators | 1 |
| Supplier Device Package | 16-TQFN (5x5) |
| Voltage - Output (Max) | 3.4V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Control Features | Enable, Power Good |
| PSRR | - |
| Voltage Dropout (Max) | 0.2V @ 4A |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
