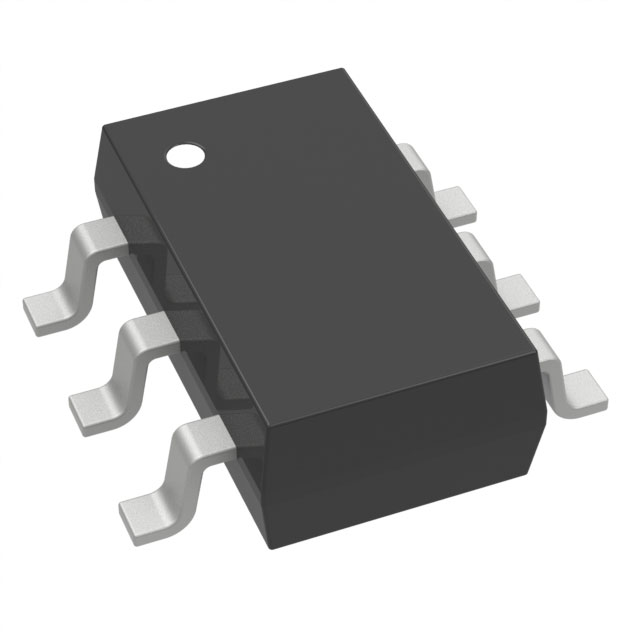

MAX1589EZT100+T
IC REG LINEAR 1V 500MA TSOT23-6Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1589EZT100-T is a fixed-output, positive linear voltage regulator IC. This component delivers a stable 1V output with a maximum current capability of 500mA. Designed for efficiency, it features a low quiescent current of 140 µA. The device incorporates essential protection mechanisms, including over-temperature and short-circuit protection. Its high power supply rejection ratio (PSRR) of 70dB at 1kHz ensures clean power delivery. The operating temperature range is -40°C to 85°C. With an input voltage range up to 3.6V and a dropout voltage of 0.35V at 500mA, this regulator is suitable for applications in portable electronics and power management systems. Supplied in a TSOT-23-6 package on tape and reel, it is manufactured by Analog Devices Inc./Maxim Integrated.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 140 µA |
| Voltage - Input (Max) | 3.6V |
| Number of Regulators | 1 |
| Supplier Device Package | TSOT-23-6 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1V |
| Control Features | Enable, Reset |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Protection Features | Over Temperature, Short Circuit |
