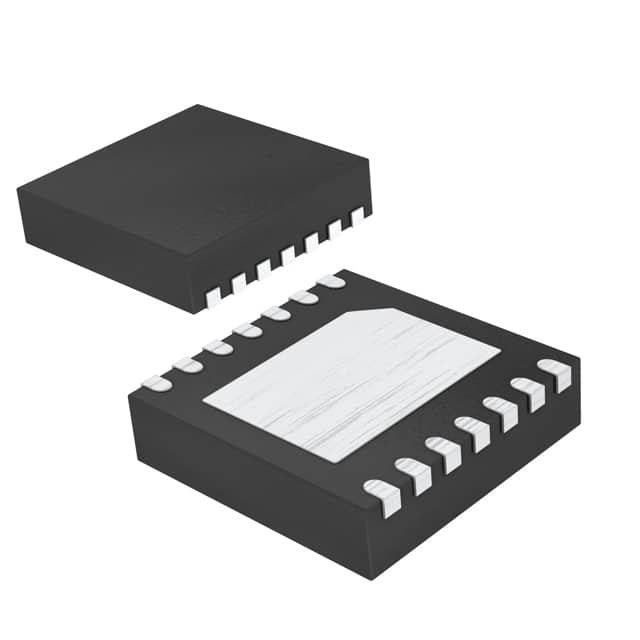

MAX8607ETD+T
IC LED DRIVER RGLTR 1.5A 14TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX8607ETD-T is a single-output DC-DC boost regulator designed for LED driver applications. This component features an integrated switch and operates at a 1MHz switching frequency, capable of delivering up to 1.5A for camera flash functionality. The device supports step-up (boost) topology, enabling efficient voltage conversion. Its compact 14-TDFN (3x3) package with an exposed pad facilitates surface mounting and thermal management. Operating within a supply voltage range of 2.7V to 5.5V and an ambient temperature range of -40°C to 85°C, the MAX8607ETD-T is suitable for mobile and portable electronic devices. This component is configured for single-channel operation and is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Camera Flash |
| Current - Output / Channel | 1.5A (Flash) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 14-TDFN (3x3) |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
