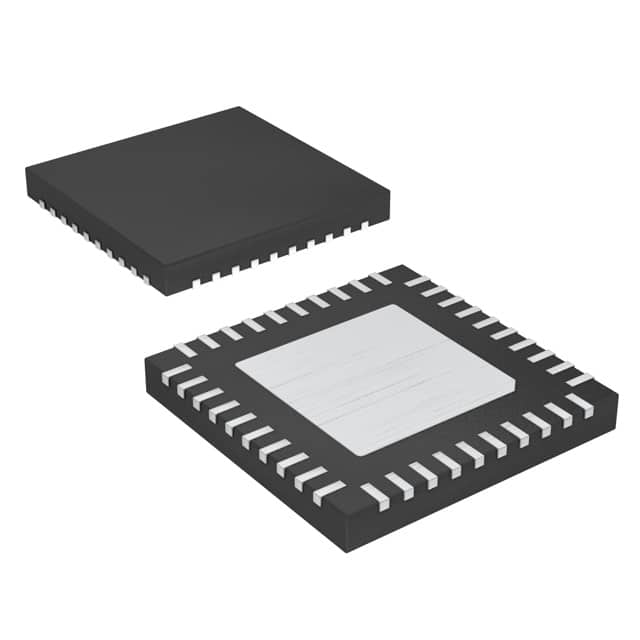

MAX6975ATL+
IC LED DRIVER LINEAR 30MA 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6975ATL- is a 24-output linear shift register LED driver. This device features individual channel current control up to 30mA, with a nominal output voltage capability of 7V. The MAX6975ATL- operates from a 3V to 3.6V supply and includes internal switches, enabling efficient operation. Its 40-TQFN (6x6) package with an exposed pad is suitable for surface mounting. The driver supports a 33MHz clock frequency and offers dimming capabilities. This component is utilized in demanding applications such as signage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 40-WFQFN Exposed Pad |
| Voltage - Output | 7V |
| Mounting Type | Surface Mount |
| Number of Outputs | 24 |
| Frequency | 33MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 40-TQFN (6x6) |
| Dimming | - |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 3.6V |
