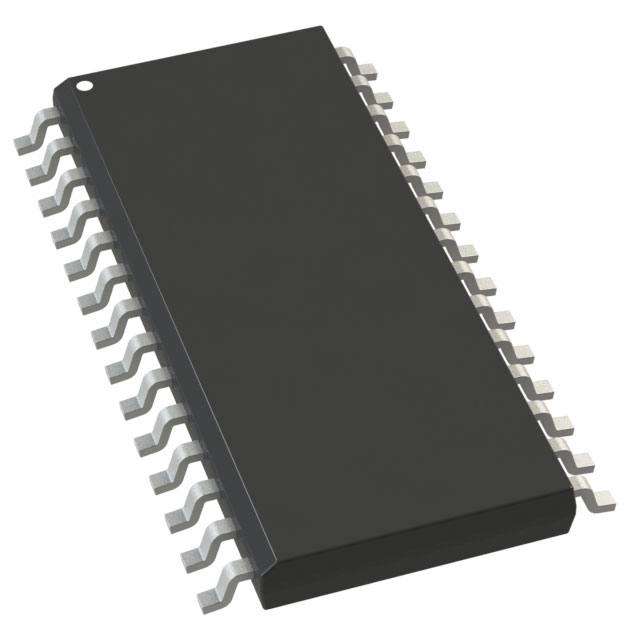

MAX25608BAUI/V+T
TWELVE SWITCH HIGH BRIGHTNESS LEManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX25608BAUI-V-T is a 12-output linear LED driver designed for high-brightness applications. This AEC-Q100 qualified component offers precise PWM dimming control for each of its twelve channels, capable of sourcing up to 1.6A per switch. The device operates on a supply voltage range of 4V to 60V and features internal switches. Its 28-TSSOP-EP package with an exposed pad facilitates efficient thermal management for surface mount applications. The MAX25608BAUI-V-T is engineered for demanding automotive environments, operating across a temperature range of -40°C to 125°C, and is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 12 |
| Frequency | 16.384Mhz |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C |
| Applications | - |
| Current - Output / Channel | 1.6A (Switch) |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 28-TSSOP-EP |
| Dimming | PWM |
| Voltage - Supply (Min) | 4V |
| Voltage - Supply (Max) | 60V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
