MAX16839ATT/V+
HIGH-VOLTAGE, LINEAR HIGH-BRIGHTManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX16839ATT-V is a high-voltage, linear LED driver IC designed for constant current output. Featuring a single output channel capable of delivering 100mA, this component supports PWM dimming for precise light control. Its internal switch facilitates efficient operation, and it is qualified for automotive applications (AEC-Q100). The device operates from a 5V to 40V supply voltage range and is housed in a compact 6-TDFN (3x3) package, suitable for surface mounting. Operating temperatures range from -40°C to 125°C. This LED driver is utilized in demanding applications within the lighting and signage industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 97 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

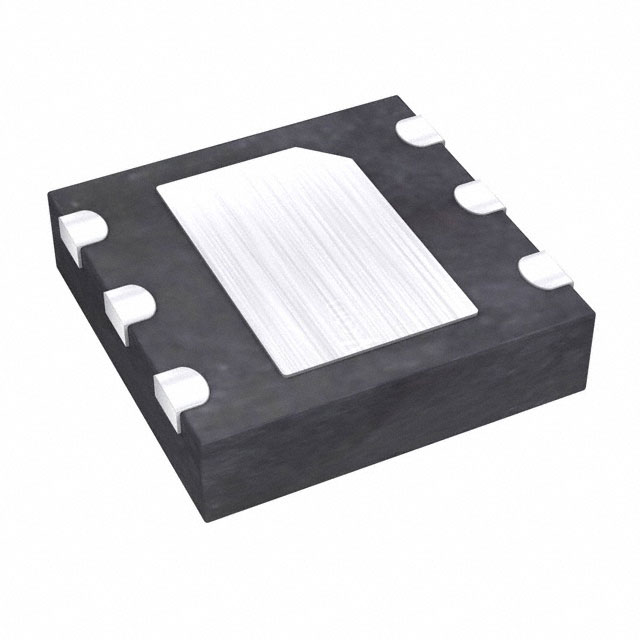

| Package / Case | 6-WDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | Lighting, Signage |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | Yes |
| Topology | Constant Current |
| Supplier Device Package | 6-TDFN (3x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 5V |
| Voltage - Supply (Max) | 40V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
